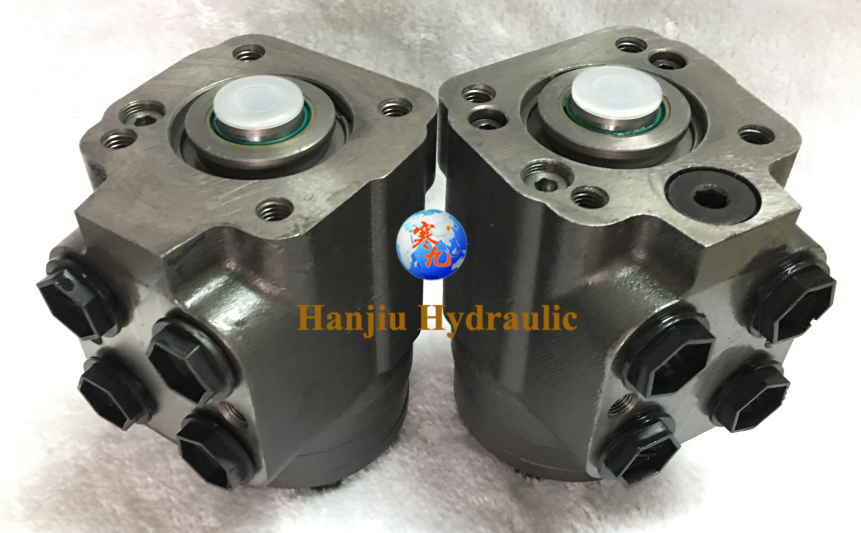

Hydraulic Steering Unit Orbitrol OSPC-100-ON/CN/LS, HKUS-100/3/4/8
Description:
Hanjiu Hydraulic steering unit 102 series can 100% replace M+S HKU,HKUS.
SCU 102S-1, 2, 4 series inherits the steering function of 102 series both in the structure and in the principle. This kinds of structure is more compact, and it's more convenient in operation.
Multi types, sizes, key or splind shafts available:
* Suitable for nearly all kinds of ,Massey Ferguson, Fiat, MTZ, New Holland, tractors.
* Different oil port,different types of shaft, different flange can choose.
* Many kinds of displacement, can suitable for any hydraulic systems.
* High quality materials to produce orbitrol steering unit body(Aluminum&Alloy).
* 12 months warranty.
* The best after-sale service
Features:
102S hydraulic steering units
1. Including integrated valve (relief valve shock valve, check valve, suction valve)
2. Replace (OSPC), M+S (HKUS/4) series.
3. Hydraulic steering unit is widely used in the steering control system, help to steering easily.
4. We produce the products match with the OEM number of all machines.

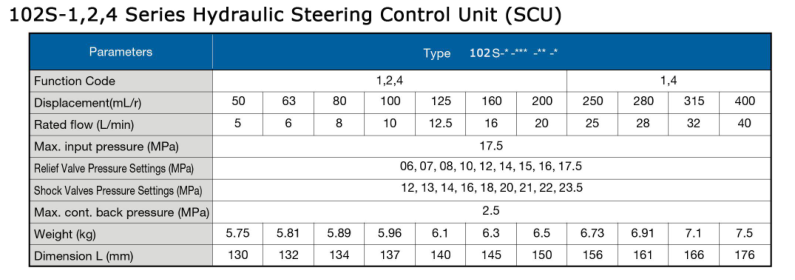

Main Specifications:
| Parameters | HKUS 40/3,4,8 | HKUS 50/3,4,8 | HKUS 63/3,4,8 | HKUS 80/3,4,8 | HKUS 100/3,4,8 | HKUS 125/3,4,8 | HKUS 160/3,4,8 | HKUS 200/3,4,8 | HKUS 250/3,4,8 | HKUS 315/3,4,8 | HKUS 400/3,4,8 | HKUS 500/3,4,8 |
| Displacement | cm3/rev | 39.6 | 49.5 | 65.6 | 79.2 | 99 | 123.8 | 158.4 | 198 | 247.5 | 316.8 | 396 | 495 |
| in3/rev | 2.42 | 3 | 4 | 4.83 | 6.04 | 7.56 | 9.67 | 12.1 | 15.1 | 19.3 | 24.2 | 30.2 |
| Rated Pressure | bar | 140 | 140 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 |
| PSI | 2030 | 2465 | 2465 | 2465 | 2465 | 2465 | 2465 | 2465 | 2465 | 2465 | 2465 | 2465 |
Applications:
102S Hydraulic steering unit is widely used in the steering control system, such as the steering system of many kinds of industrial and agricultural, mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.
Model Crossing:
| Hanjiu Hydraulic |
| M+S | Eaton |
| 101 | OSPB | | |
| 101S | OSPC | | |
| 101S-5T | OSPJ | | |
| 102 | | HKU | |
| 102S | | HKUS | |
| 060 | | | 45 series |
