Multi-Disc Brake Hydraulic Drive Motors Off - Highway Vehicles BK2 LB288

Name: MultiDisc Brake Hydraulic Drive Motors Off Highway Vehicles BK2 LB288
Brand: HANJIU
Price: 1 USD

Buy cheap Multi-Disc Brake Hydraulic Drive Motors Off - Highway Vehicles BK2 LB288 product

Brand Name : HANJIU

Model Number : BK2-1-550-EEB

Certification : CE

Place of Origin : China

MOQ : 1 Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 100000 pieces per year

Delivery Time : 25 - 35 work days

Packaging Details : 1 pc/ inner carton, carton/ pallet

Type : Motorbrakes

Brand : HANJIU

Model No. : BK2-1-550-EEB

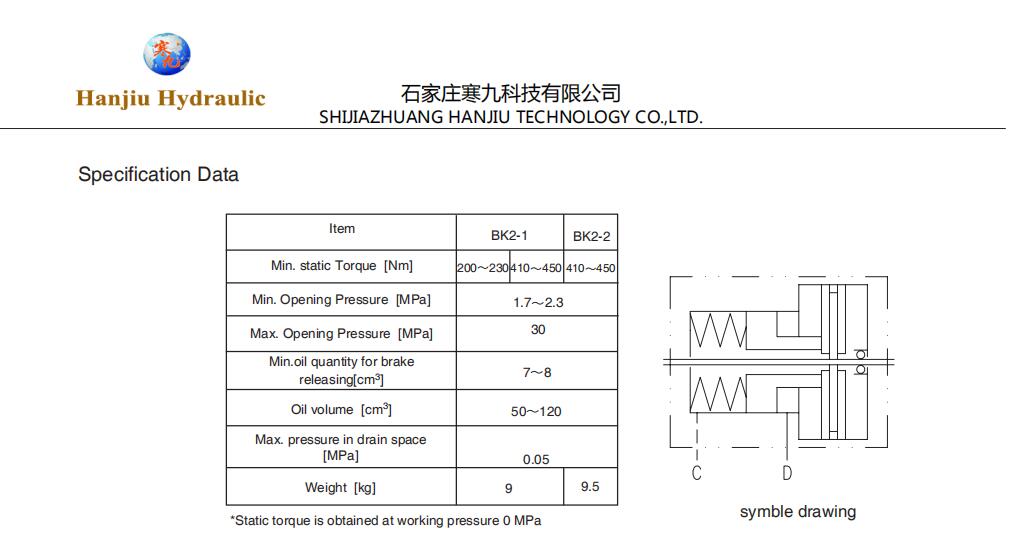

Min static torque : 200 - 230 Nm, 410 - 450 Nm

Min opening pressure : 1.7 - 2.3 MPa

Max opening pressure : 30 MPa

Min oil qty for brake releasing : 7 - 8 cm3

Oil volume : 50 - 120 cm3

Max pressure in drain space : 0.05 MPa

Application : Loader, Wheel Loader, Front End Loaders, ...

Contact Now

Multi-Disc Brake Hydraulic Drive Motors Off-highway Vehicles BK2 LB288

Quick details:

Model no. : BK2-1-550-EEB
Hydraulic Motorbrakes replace LB288 by M+S
Flange attachement to hydraulic motor type BMP, BMR, BMS, or MP, MR, MS, or OMP, OMR, OMS
ports: G 1/4''
shaft input / output shaft 25mm cylindrical with key A8 X 7X 32
square flange
OEM quality, made in China
optimised for small spaces
Quality level: top AAA, best in China
Delivery time: 21 work days
Shipping port: Any port of China

BK2 introduction:

BK2 series brake is one kind of hydraulic wet disc brake. The brake force is caused by the spring, and hydraulic pressure releases the brake force.

Features as follows:

BK2 series adopts the special friction disc and high strength spring design
long life endurance, low noise, high braking reliability.
with 4 Drain port design , the brake can be used in different applications.
compact structure, easy mounting.
it can be used preferentially together with BMP, BMR, BMS series hydraulic Motor

Specification Data of Hydraulic Motors
Distribution type	Model	Displacement	Max. operating pressure	Speed range	Max. output power
Distribution type	Model	(cm3/rev.)	(MPa)	(rpm)	(kW)
Axial distribution	BMM	8-50	14	30-1950	3.2
	BMP	36-400	16.5	30-879	10
	BMR	36-375	20	30-970	15
	BMH	200-500	20	30-430	17

Specification Data of Hydraulic Motor
Distribution type	Model	Displacement	Max. operating pressure	Speed range	Max. output power
Distribution type	Model	(cm3/rev.)	(MPa)	(rpm)	(kW)
Disc distribution	BMS	80-475	22.5	30-800	24
	BMT	160-800	24	30-705	35
	BMV	315-800	28	10-446	43

Instruction:

In order to make the BK2 series brake work under the best situation, we recommend the normal requirements as follows:

Assembly: 1st of all , we have to mount the brake BK2 with hydraulic motor, and then fill the brake with lubrication oil through the drain port, and then mount with other parts.
Fluid type:Mineral based-HM(GB/T763.2-87) (ISO6743/4) or HLP(DIN51524).
Temperature range:normal -20℃-90℃the best optimal situation 20℃-60℃
Viscosity range: 20~75mm2/s; the best optimal situation 42~74mm2/s at 40℃.
Filtration:nominal filtration of 25 micron, ISO code 20/16.
Maintenance: changed after the first 50~100h;then after every 500~1000h.

Applications:

BK2 series hydraulic brake stays in braking condition since delivery out of the factory.

During normal operation, there exists the braking force in the brake disc, only if the pressure of hydraulic system, that the brake links , is lower than the pressure required by the release of brake, the spring force shall keep the brake in braking condition.

BK2 series hydraulic brake is widely used in heavy duty machinery, such as engineering machinery, cranes, off-highway machinery vehicles, construction machinery, material handling machinery, agricultural machinery, mining, sanitation machinery, timber industries. They are also used in winches and in hydrostatic drive systems for automatization engines.

Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
