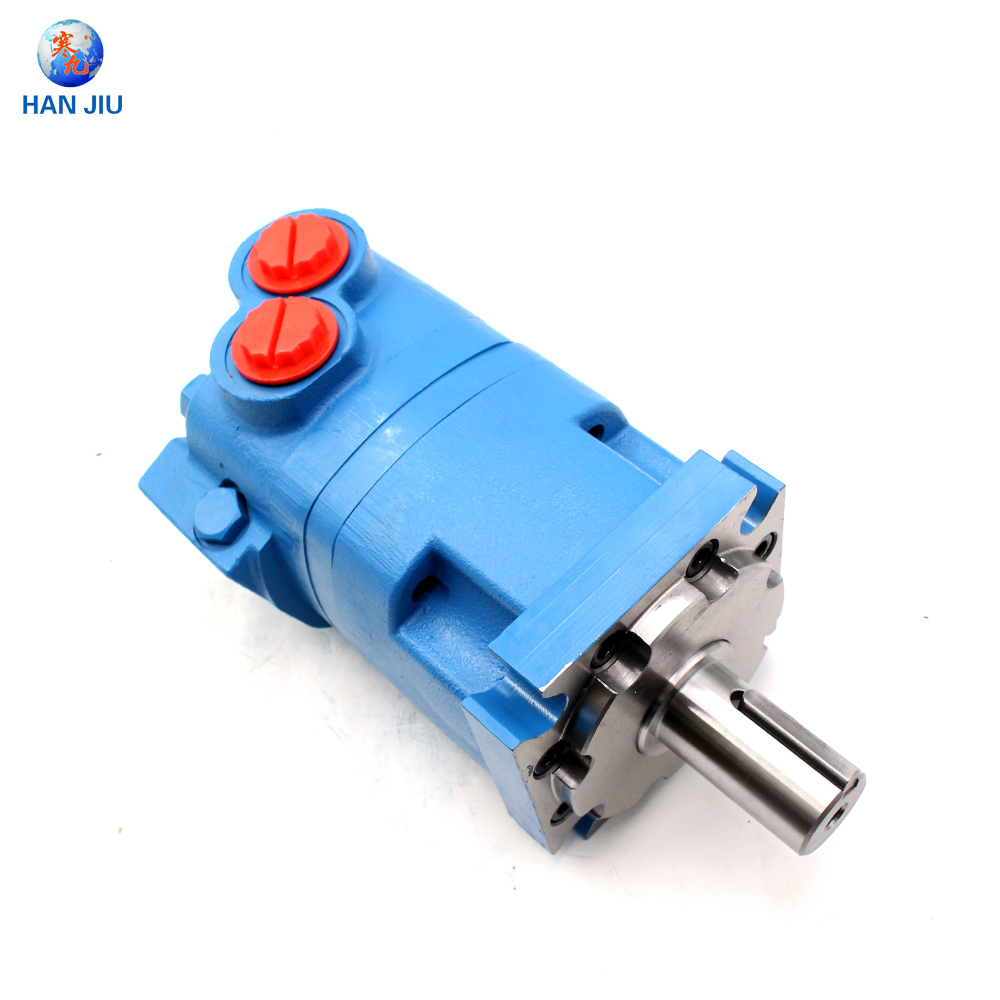

EATON CHAR-LYNN 109-1100-006 Hydraulic Geroler Disc Valve Motor, 320 Nm, 697 Rpm
Product details
Displacement - 6.7 cu in
Mounting - standard mounting
Shaft - 1 1/4" straight shaft
Ports - 1 1/16" -12 UN-2B SAE O-RING PORTS
Max Speed - 460 rpm (cont) / 650 rpm (interm)
Flow - 75 gpm (cont) / 115 gpm (interm)
Torque - 4514 lb-in (cont) / 6100 lb-in (interm)
Pressure - 3000psi (cont) / 4500 psi (interm) / 4500 psi (peak)
Main specification
| TYPE | BMK4
200 | BMK4 250 | BMK4
315 | BMK4
400 | BMK4
500 |
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 |
| Max.speed(rpm) | cont. | 375 | 300 | 234 | 188 | 155 |
| int. | 562 | 450 | 351 | 282 | 232 |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 |
| int. | 30 | 30 | 30 | 30 | 27.5 |
| peak. | 30 | 30 | 30 | 30 | 30 |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 |
We have more types match charlynn 2000series,6000series
APPLICATIONS:
- Mobile equipment
- Snow Removal, mowing
- Spayer, trencher
- Wood products
- Material Handling Equipment
- Oil & Gas
- Forestry Equipment
- Mining

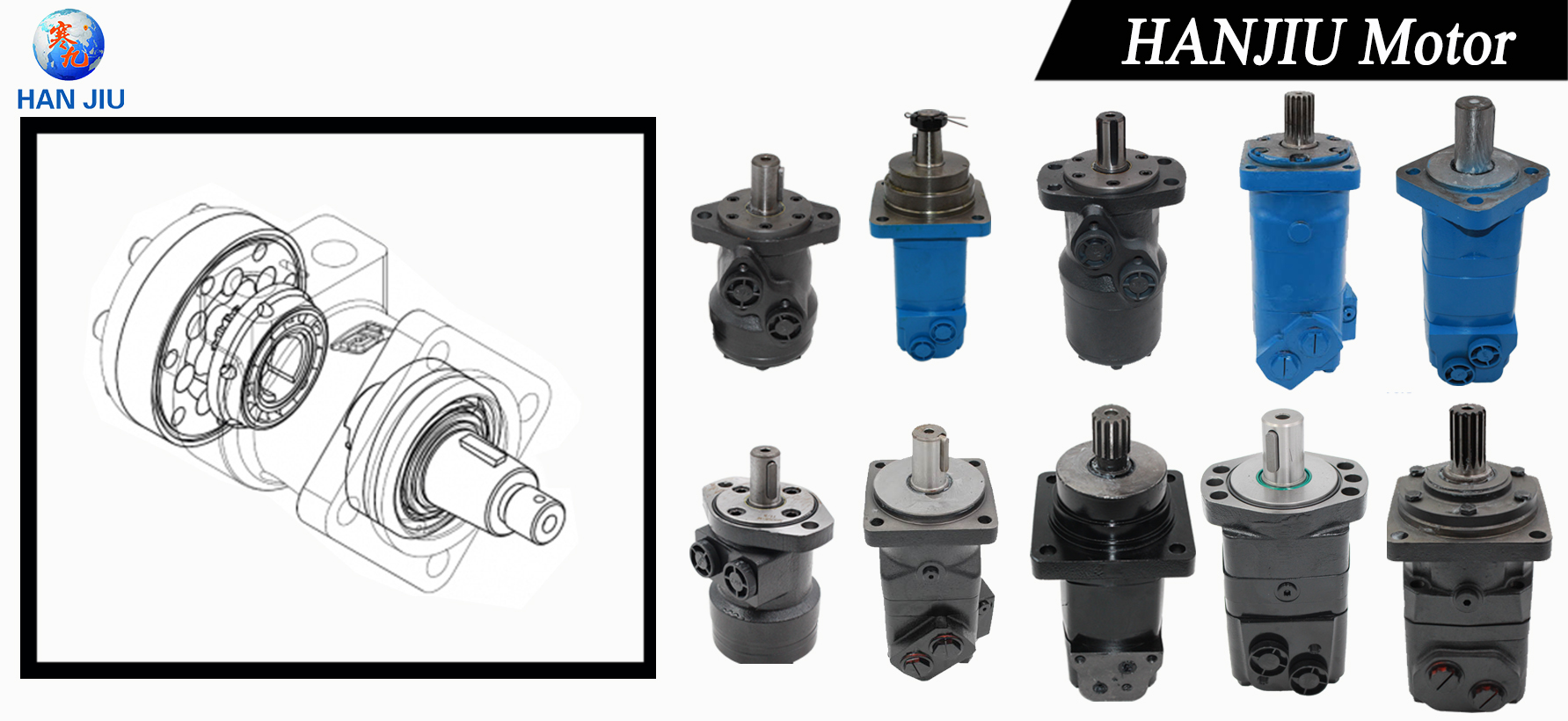

Hanjiu is specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace , Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.
we are willing to be your new supplier, because our products have lower price and good performance,will saving you more extra cost,the best after sale service will less complaint from your consumers,also stable delivery will make you have enough stock.
