BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange

Name: BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4Bolt Flange
Brand: HANJIU
Price: 350 USD

Buy cheap BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange product

Brand Name : HANJIU

Model Number : 119-1047003

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 100 Sets

Price : 350

Payment Terms : L/C,T/T,Western Union,Western Union

Supply Ability : 300000 sets per year

Delivery Time : 35 - 45 work days

Packaging Details : Carton, Box, Pallets

Item : disc valve motors

Model : BMK10

Displacement : 940CC

Flange : 127.0 [5.00] PILOT DIA.

Shaft : 16teeth SPLINE SHAFT

Port : 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS

Contact Now

Hydraulic Geroler Disc Valve Motor 10000 Standard, 940.8 cm³/r with spline shaft 4-Bolt Flange

HANJIU BMK10 series hydraulic disc valve motors equivalent of charlynn 10000 series motor

SPECIFICATIONS

Series	BMK10-940=119-1047
Displacement	940cm³/r
Mounting Type	STANDARD, 4 BOLT; 127.0 mm PILOT DIA
Shaft Type	53.98 [2.125] DIA. FLAT ROOT
Maximum Operating Temperature	180 °F
Output Shaft Size	Spline shaft
Overall Height	5.79 in
Overall Length	17.74 in
Overall Width	5.91 in
Seal Type	Standard
Drain Connection Size	1 1/4 inch Split Flange

Main Specification

Type		BMK10 350	BMK10 480	BMK10 665	BMK10 940
Geometric displacement (cm3 /rev.)		351	479	638	933
Max.speed (rpm)	cont.	500	350	250	178
Max.speed (rpm)	int.	790	560	400	280
Max.torque (N•m)	cont.	1050	1480	2080	2750
Max.torque (N•m)	int.	1400	1980	2600	3400
Max.pressure drop (MPa)	cont.	20.5	20.5	20.5	19
Max.pressure drop (MPa)	int.	27.5	27.5	26	24
Max.flow (L/min)	cont.	170	170	170	170
Max.flow (L/min)	int.	265	265	265	265

BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange

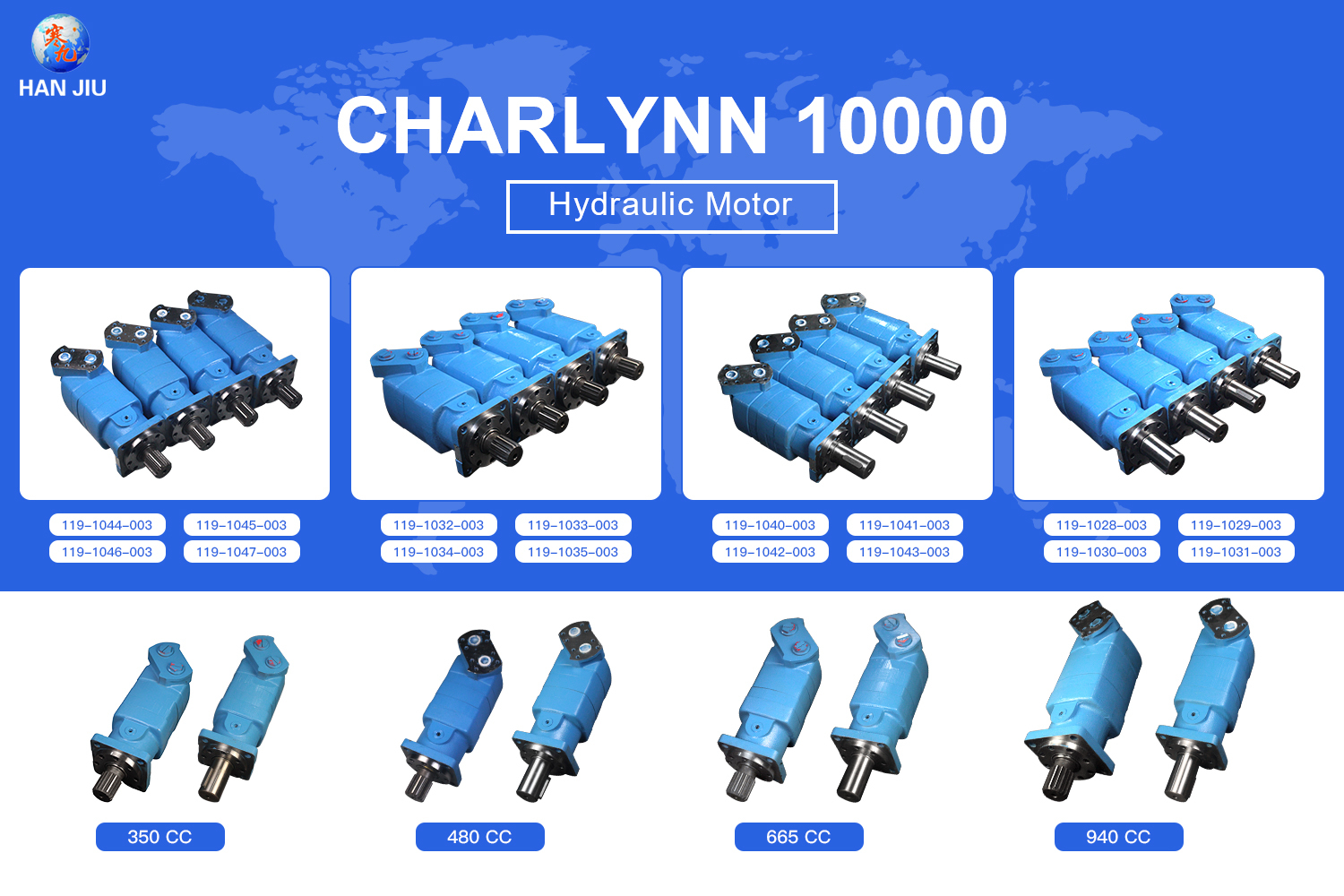

Eaton similar type motors are available we belows:

10000 (119-) HANJIU BMK10

119-1044-003
119-1045-003
119-1046-003
119-1047-003

119-1032-003
119-1033-003
119-1034-003
119-1035-003

119-1040-003
119-1041-003
119-1028-003
119-1029-003
119-1042-003
119-1043-003
119-1030-003
119-1031-003

BMK10 Hydraulic Geroler Motor 940CC Spline Shaft 4-Bolt Flange
