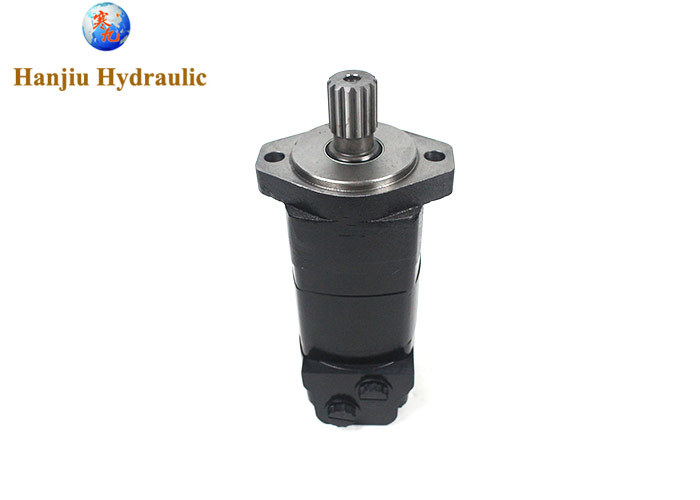

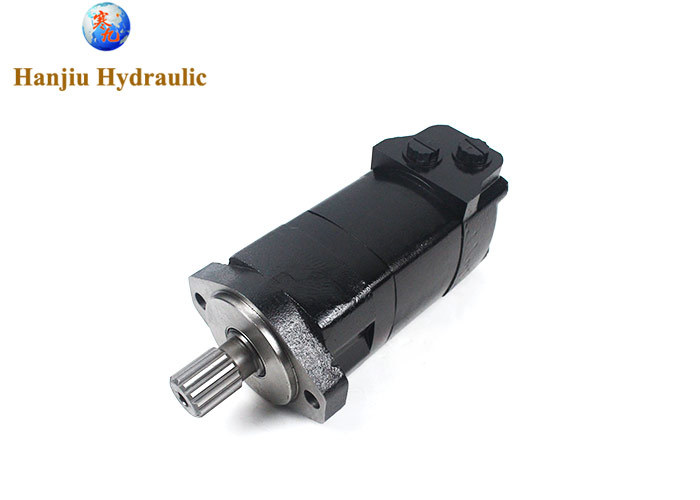

Hydraulic Motor CB11480558 - AXT13783 For sugarcane harvester charlynn 2k series motor
Hanjiu technology produce BMK2 series hydraulic disc motors, matching Eaton Charlynn 2000 Motor
which are used on sugarcane harvesters, the same specification ,same performance, but in a cost effective,
to cut your costs down, optimize your supply chain
Quick review:
Model No.:CB11480558 AXT13783
| type | BMK2 MOTOR eaton 2000 series motor |
| speed | 385 - 577 rpm |
| torque | 540 - 665 nm |
| mounting | 2 Bolt SAE A Flange |
| shaft | spline shaft |
Main specifiction:
| Main Specifications: |
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 |
|
Geometric displacement
(cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 |
|
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 |
| * Continuous pressure :Max. value of operating motor continuously. |
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. |
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. |
Our advantages
1. Technical strength and product quality assurance
ISO 9001 quality management system certification;Advanced production equipment and processes
2. Production capacity and delivery reliability
having the ability of mass production to meet the demand of customers' large-volume orders
having an efficient logistics system to ensure that products are delivered to customers on time
3. Industry experience and customized service capability
having rich experience in the Orbital motor industry and be familiar with the specific needs and standards of the industry
4.After-sales service and technical support system
5. R&D innovation capability and industry trend tracking
6. Price competitiveness and cost optimization
