MR315HB hydraulic orbit motors with 14-DP12/24 spline shaft, BSPP ports grass cutting machines

Name: MR315HB hydraulic orbit motors with 14DP1224 spline shaft BSPP ports grass cutting machines
Brand: HANJIU
Price: 1 USD

Buy cheap MR315HB hydraulic orbit motors with 14-DP12/24 spline shaft, BSPP ports grass cutting machines product

Brand Name : HANJIU

Model Number : BMR-315-2-F-D

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : Contact seller for latest offer

Payment Terms : T/T,Western Union,Paypal

Supply Ability : 200000 pieces per year

Delivery Time : 35 work days

Packaging Details : Carton, Box, Pallets

Product : Hydraulic motor,orbit motor

Model No. : BMR315

Manufacturer : Hanjiu

Origion : China

material : cast iron

warranty : 1 year

Contact Now

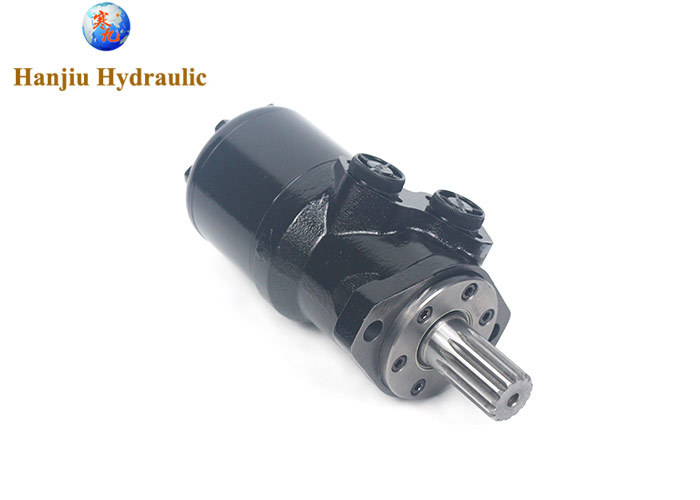

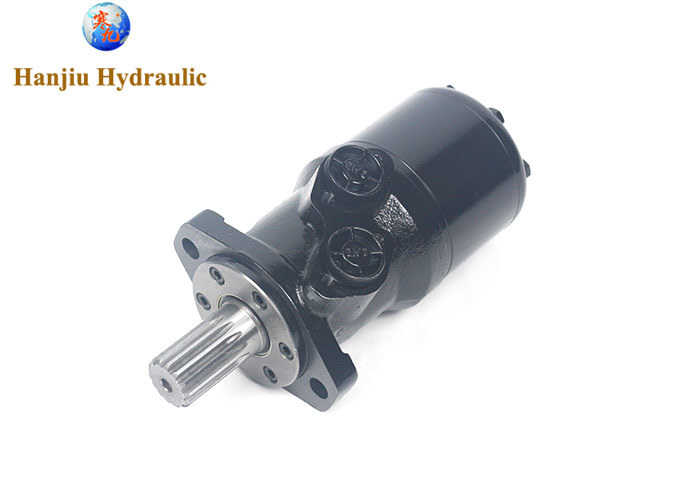

MR315HB hydraulic orbit motors with 14-DP12/24 spline shaft, BSPP ports grass cutting machines

Quick review:

Model number: BMR-315-2-F-D-B
Displacement: 315 ml/r
Shaft:14Teeth spline shaft
Rotation, CW

Ports: G1/2

Drain ports:G1/4

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 40	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 400
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

MR315HB hydraulic orbit motors with 14-DP12/24 spline shaft, BSPP ports grass cutting machines

Application

Conveyors

Feeding mechanism of robots and manipulators

Metal working machines

Textile machines

Food industries

Agriculture machines

Grass cutting machinery etc.

More BMR series hydraulic motor we have:

Model- Spool valve, roll-gerotor

Flange mount

Motor with needle bearing

Side and rear ports

Shafts- straight, splined and tapered

Shaft seal for high and low pressure

Metric and BSPP ports

Speed sensoring

MR315HB hydraulic orbit motors with 14-DP12/24 spline shaft, BSPP ports grass cutting machines
