Wheel Loader Traveling Motor Hydraulic Orbital Motor Wheel Mounted 315cc

Brand Name : HANJIU CHINA

Model Number : BMV-315-W-T-G

Certification : CE

Place of Origin : CHINA

MOQ : 100 Unit

Price : Contact the selle to get the best offer

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 sets per year

Delivery Time : 45-55 work days

Packaging Details : Standard export package

Product : Hydraulic Wheel Motor

Model No. : BMV-315-W-T-G

Flange : Wheel mount

Application : Wheel Loader

Contact Now



Welcome!
Hydraulic Motor manufacturer from China specializes in high performance CW and CCW rotation Hydraulic Wheel Motor for various applications
For example, engineering, construction, agriculture, forestry
Partners include OEM, hydraulic importers, hydraulic distributors

Please see product introduction below:

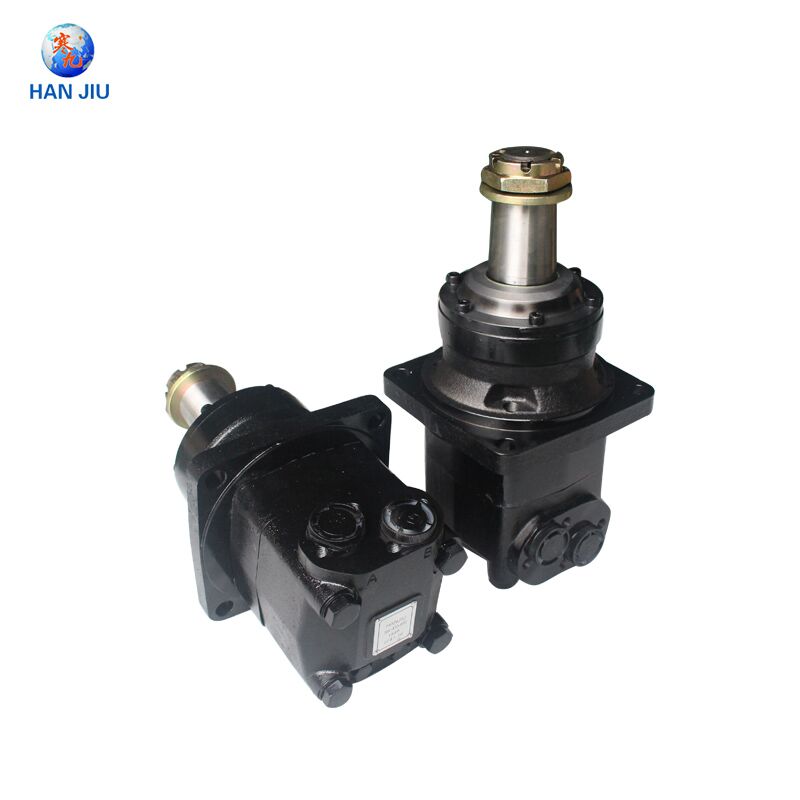

Wheel loader traveling motor, Hydraulic orbital motor wheel mounted, 315cc


Quick review:

This is an BMV315 Orbital Motor with wheel mounted flange apply to Wheel Loader, it can be clockwise rotate and counter-clockwise rotate, excellent for Whell Loader usage.





Technical information
BMV-315-W-T-G

"Tapered shaft Ø60 mm

Wheel flange 4 bolt
Working port, G 1, G 1/4





Main Specifications:


Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.


 Wheel Loader Traveling Motor Hydraulic Orbital Motor Wheel Mounted 315cc



About manufacturer:

HANJIU is a hydraulic motor manufacturing company from China. More than a thousand types of hydraulic motors are widely used in automated hydraulic systems in engineering, construction, agriculture, forestry, fishery, ports, docks, mines, etc. For example, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, mining rig manufacturers in North America, and dealers from Danfoos, Eaton, Parker, and White are all good partners for us. If you are an equipment manufacturer or hydraulic distributor, please contact us to discuss your needs and learn how we can better realize your needs.





Please check measurement of this motor:






Wheel Loader Traveling Motor Hydraulic Orbital Motor Wheel Mounted 315cc


Wheel Loader Traveling Motor Hydraulic Orbital Motor Wheel Mounted 315cc
