BMSS / OMSS Bearingless High Pressure Hydraulic Motor Short Version Without Front Bearing

BMSS/OMSS Bearingless hydraulic motor Short Version without front bearing

Description:

Eaton 4000 series 111-xxx-xxx high pressure bearingless hydrualic motor.
The disc valve Geroler technology, which has rollers incorporated into the internal fixed gear ring, allows for higher flows and higher pressures than the spool valve technology, resulting in higher torques and efficiencies throughout the line. The disc valve product family offers many shaft, port, and speed sensor options that answer directly to the specific needs of each application.

Characteristic features:

1. Advanced manufacturing devices for the Geroler gear set,which use low pressure of
start-up, provide smooth and reliable operation and high efficiency.

2. The output shaft adapts in tapered roller bearings that permit high axial and radial
forces.Can offer capacities of high pressure and high torque in the wide of applications.

3. Advanced design in disc distrbution flow, which can automatically compensate in
operating with high volume efficiency and long life, provide smooth and reliable operation

Applications:

The bearingless motor is especially suited for applications such as gear boxes, winchdrives, reel and roll drives.

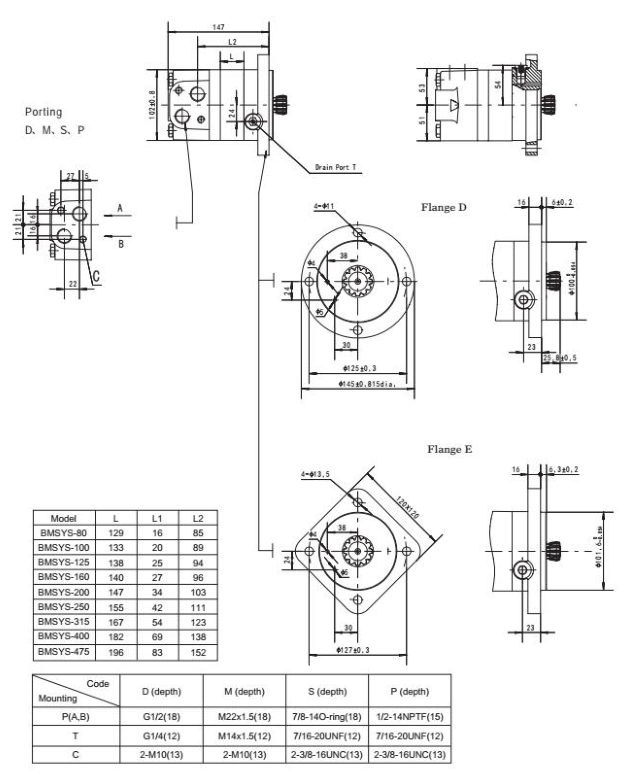

Main Specifications:

Reference Brand List:

fixed displacement hydraulic motor

hydraulic pump motor

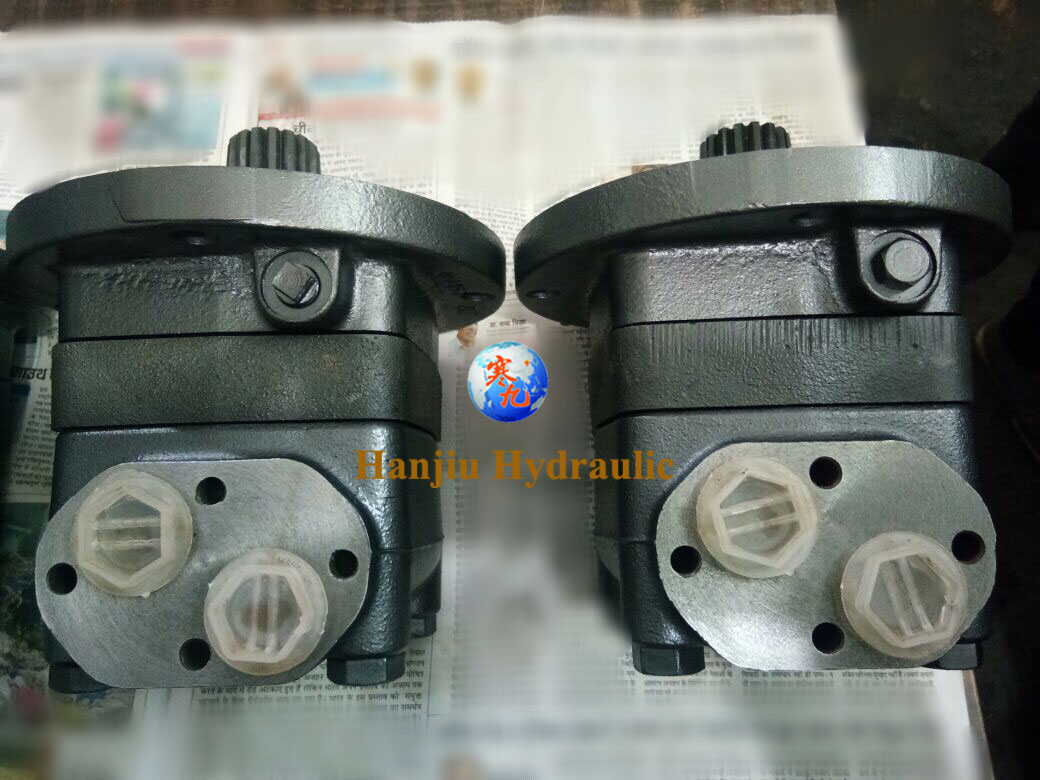

BMSS / OMSS Bearingless High Pressure Hydraulic Motor Short Version Without Front Bearing Images
