Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry

Name: Cycloid Structure Low RPM Hydraulic Motor BMP OMP MP 25mm Shaft For Light Industry
Brand: HANJIU
Price: 1 USD

Buy cheap Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry product

Brand Name : HANJIU

Model Number : BMP

Certification : CE

Place of Origin : China

MOQ : 50 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100,000 Pieces per year

Delivery Time : 10-15 working days

Packaging Details : Carton Packing, and finally with pallet or wooden box

Product Name : Cycloid Hydraulic Motor

Model No. : BMP

Brand : HANJIU

Power : Hydraulic oil

Structure Style : Cycloid

Motor Shaft : Straight, Splined and Tapered

Contact Now

Low RPM Hydraulic Motor BMP/OMP/MP 25mm Shaft For Hydraulic Equipment Service

Introduction:

Hanjiu Hydraulic, as a professional manufacturer of hydraulic products, mainly produce and export hydraulic orbital motors, gear motor and steering units. We service the walking, steering, power transmission and lifting systems. From big to small, our motors displacement from 50ml/r to 1000ml/r. All interchangeable with , Char lynn, M+S series.

Features:

1. Shaft groove distributes flow, simple and compact structure, high accuracy of flow distributing

2. Stator-rotor of toothed shape, high mechanical efficiency, longer working lifetime under high pressure

3. Touching-ball bearing of coupled-angle, bear higher loading in both radial and axial directions, small friction force, high mechanical efficiency

Main Specifications:

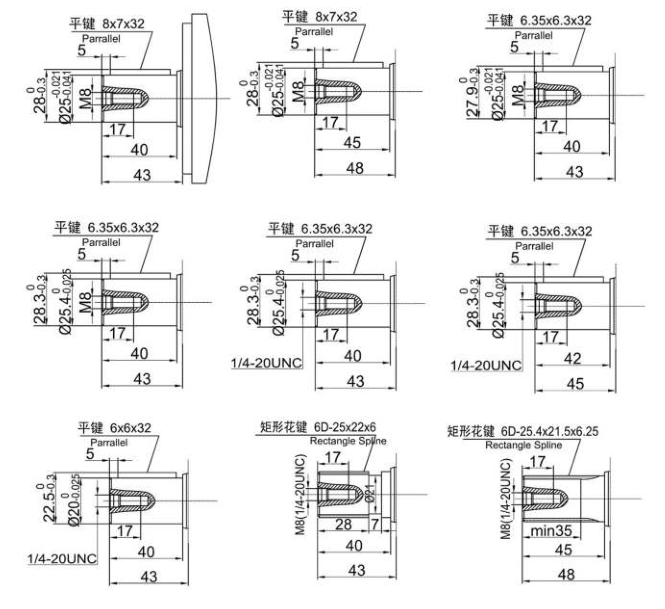

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

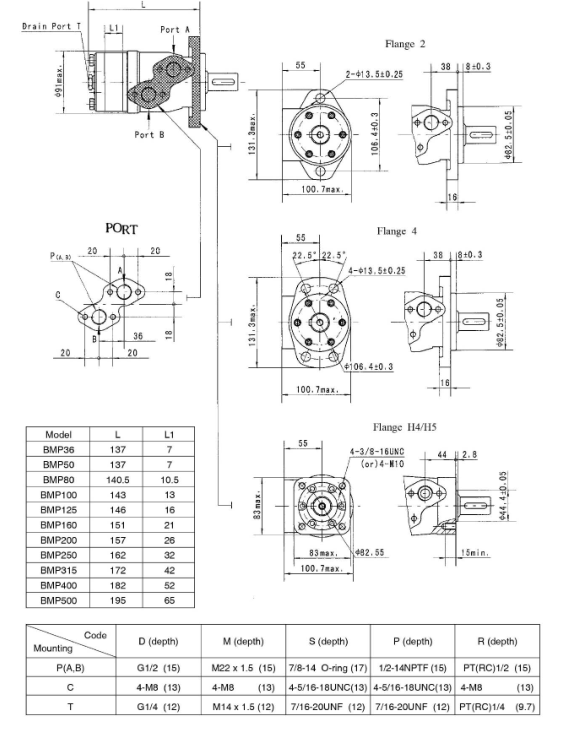

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry

Applications:

BMP hydraulic motors are widely applied in Agriculture machinery and Light Industry.

1. Agriculture machinery: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.

2. Light industry: winding machines, textile machines, printing presses, operating with a washing machine.

HANJIU	M+S	EATON		ROSS	WHITE	PARKER	SAM	BOSCH
HYDRAULIC	HYDRAULIC	CHAR LYNN		TRW	CROSS		BREVINI	REXROTH

BMM	MM		OMM					MGX
	MLHK	J SERIES		-	-	-	BGM
BMP/BM1	MP		OMP	MF	WP	TC	BG	MGP, GMP
						TE
	HP	H SERIES	DH	MG	RS	TB
BMR/BM2	MR		OMR	MB	WR		BR	MGR, GMR
	HR	S,T SERIES	DS		RE	TF
	MLHRW, RW	W SERIES	OMEW
BMH/BM4	MH		OMH
	MLHH			ME
	HW, HWF				RE	TG
BMS/BM5	MS, MSY		OMS			TG		MGS, GMS
							HPR
	MLHS	2000 SERIES		ME	RE
BMT/BM6	MT		OMT					MGT, GMT
	MLHT	6000 SERIES		MJ			HT
	MTM		TMT
BMV	MV		OMV					MGV, GMV
	MLHV	10000 SERIES
