BMK2-315-WE-G-SU Hydraulic Motor ASSY 315cc, wheel mount flange, 31.75mm shaft

Product Categories
Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

BMK2-315-WE-G-SU Hydraulic Motor ASSY 315cc, wheel mount flange, 31.75mm shaft

Brand Name : HANJIU

Model Number : BMK2-315-WE-G-SU

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 90 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 10000 pieces per year

Delivery Time : 35 - 45 work days

Packaging Details : 1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP

Type : Hydraulic motor

Brand : HANJIU

Model No. : BMK2-315-WE-G-SU

Displacement : 315ml/r

Flange : Wheel mount

Port size : 7/8-14UNF O-RING

Drain line : 7/16-20UNF

Shaft : 31.75mm

Speed : 246 - 365 rpm

Torque : 765 - 885 nm

Contact Now





Quick review:

Model No.: BMK2-315-WE-G-SU



displacement 315ml/r
speed 246 - 365 rpm
torque  765 - 885 nm
mounting 4 boltm wheel mount
shaft 31.75mm straight





Main specifiction:



Main Specifications:
Type BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2 BMK2
65 80 100 125 160 200 250  315 400 475
Geometric displacement
(cm3 /rev.)		 65 80 100.9 129.8 156.8 193.4 242.5 304.3 390.8 485
Max. speed (rpm) cont. 835 800 742 576 477 385 308 246 191 153
int. 990 980 924 720 713 577 462 365 287 230
Max. torque (N·m) cont. 185 235 295 385 455 540 660 765 775 845
int. 245 345 445 560 570 665 820 885 925 930
Max. pressure drop (MPa) cont. 20.5 21 21 21 20.5 20.5 20.5 21 15.5 12
int. 27.5 31 31 31 26 26 26 24 17 14
peak 31 31 31 31 31 31 31 31 20.5 17
Max. flow (L/min) cont. 55 65 75 75 75 75 75 75 75 75
int. 65 80 95 95 115 115 115 115 115 115
Weight (kg) 9.2 9.4 9.7 10 10.2 10.5 11 11.5 12 12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

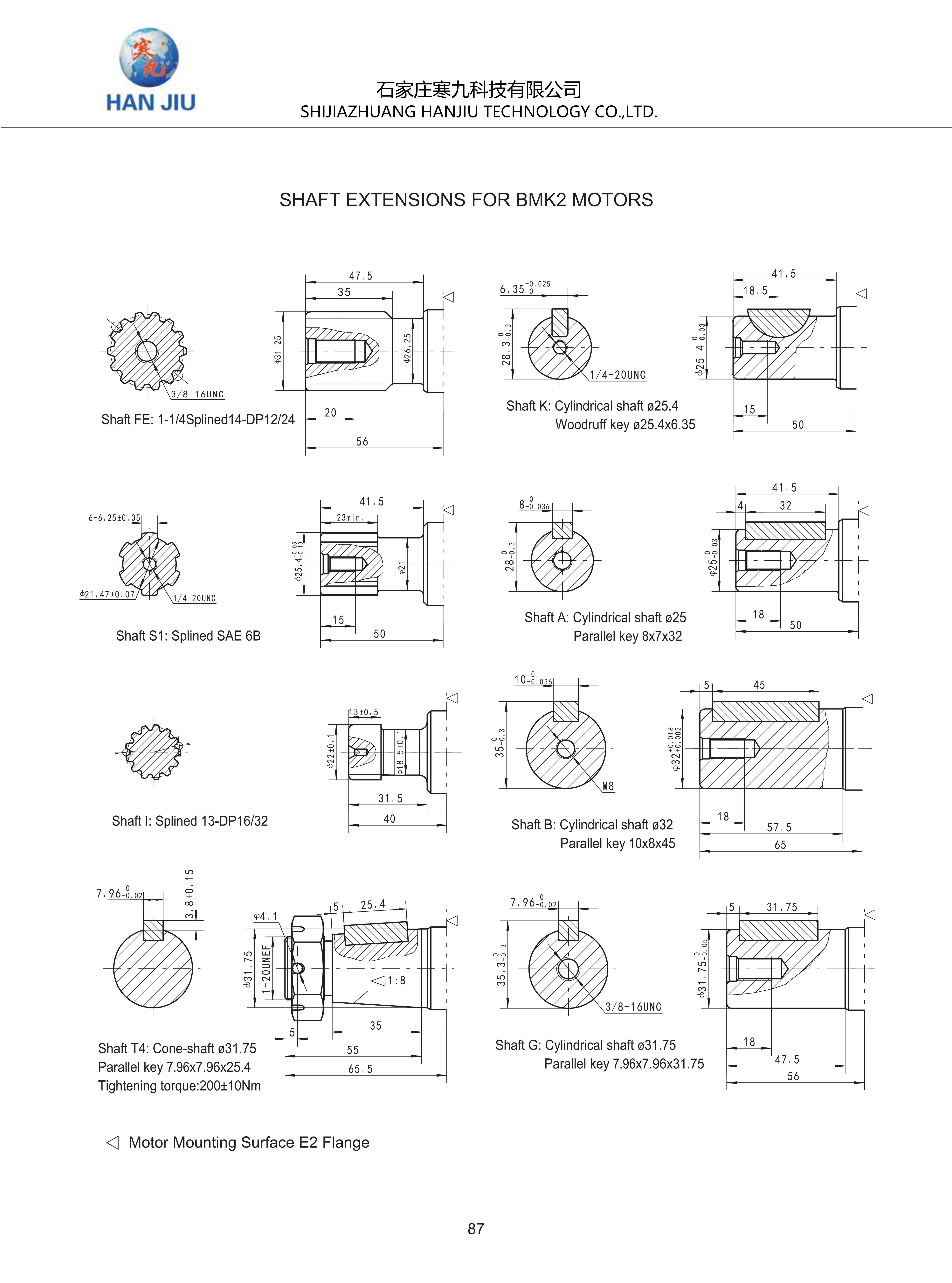

Measurement:

BMK2-315-WE-G-SU Hydraulic Motor ASSY 315cc, wheel mount flange, 31.75mm shaft



BMK2-315-WE-G-SU Hydraulic Motor ASSY 315cc, wheel mount flange, 31.75mm shaft

















More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:



BMK2-315-WE-G-SU Hydraulic Motor ASSY 315cc, wheel mount flange, 31.75mm shaft









More Char-lynn version hydraulic motors available:



BMK2-315-WE-G-SU Hydraulic Motor ASSY 315cc, wheel mount flange, 31.75mm shaft






About Hanjiu:

From China, design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use Hanjiu hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with Hanjiu. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.



BMK2-315-WE-G-SU Hydraulic Motor ASSY 315cc, wheel mount flange, 31.75mm shaft
