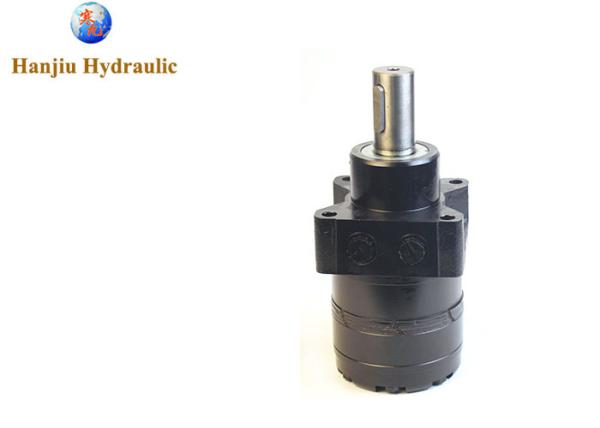

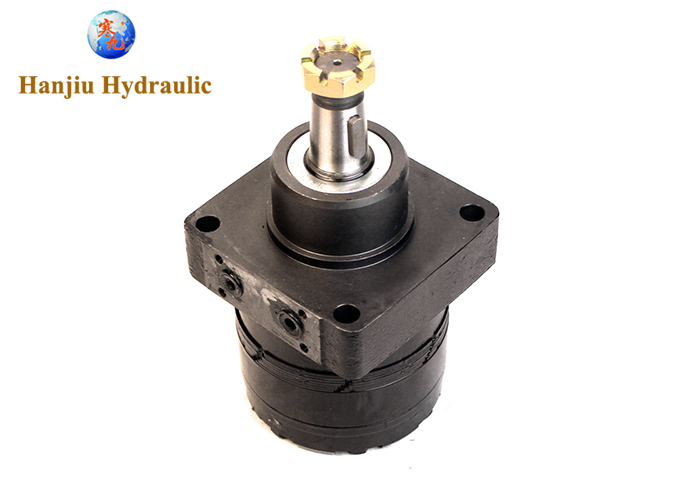

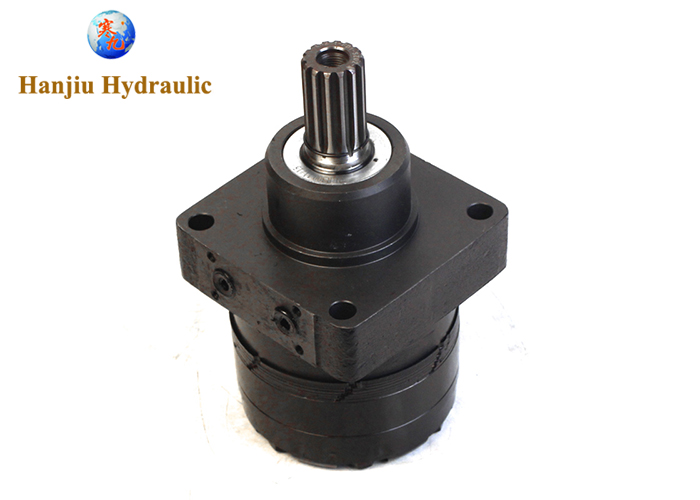

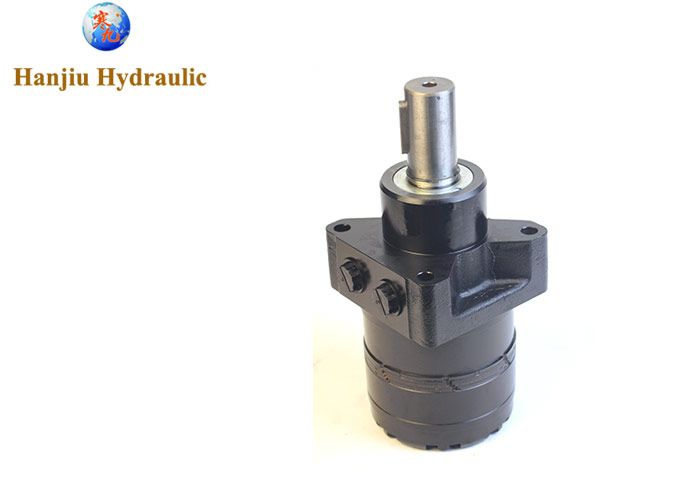

530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA

Name: 530531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA
Brand: HANJIU
Price: 1 USD

Buy cheap 530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA product

Brand Name : HANJIU

Model Number : 5300375T3827AAAAA

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : Contact the seller to get a quote

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : orbital motor

OEM # : BMER-3

Manufacturer : Hanjiu

Displacement : 375 ml/r

Mounting flange : wheel mounting flange

Shaft type : 35mm key shaft

Contact Now

White 530 Series Drive Motor Danfoss RE high torque orbital motors wheel mount 5300375T3827AAAAA

Quick review:

This is WHITE /DANFOSS compatible motor with same form, fit and function

Apply to lown mower and tractor mowers,loader mower

Here is main specifications:

Series:	white 530/531, Danfoss RE
Shaft:	35mm key shaft
Rotation:	Standard rotation
Displacement (cm3/rev):	0375
Mounting:	Wheel mounting
Geometric Displacement:	375cm3/rev (22.8 in3/rev)
Maximum Oil Flow (continuous / intermittent):	75 lpm (20 gpm) / 90 lpm (24 gpm)
Max. Differential Pressure (continuous / intermittent):	205 bar (3000 PSI) / 240 bar (3500 PSI)
Maximum Supply Pressure:	276 bar (4000 PSI)
Maximum Torque - Continuous / Intermittent:	990 Nm (8900lb-in) / 1140Nm (10250 lb-in)
Maximum Output(continuous / intermittent)	16.5 KW /19kw

Main Specifications:

Type		BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3 /rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N*m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA

More PARKER Low speed high torque compatible motors availalbe like :

TB
TC
TJ
TE
TF
TG
TK

530/531 Series White Drive Motor Danfoss RE High Torque Motor 5300375T3827AAAAA

About Hanjiu:

Hanjiu company is a professional manufacturer of industrial hydraulic components, we have focused on the development and production of a full range of hydraulic components, rail motors, steering tracks, directional control valves. Hydraulic motor is one of our main products, Hanjiu products have advanced Gerolor gear set manufacturing device, using low pressure start, shaft seal can withstand back high pressure, motor can be used in parallel or series. We adopt a special design of the power distribution system that is unprecedented in the market, which can meet the low noise requirements of the unit. It also features a compact size and easy installation. In terms of price, we also have an absolute advantage. In addition, the hydraulic motors we produce are all-round and high-quality, not only with high work efficiency, but also with perfect service. Whether it is before or after the sale of products, Hanjiu is always 100% careful and patient with customers. All Hanjiu products come with a one-year warranty after they are sold. During this period, Han Jiu will be responsible for any damage caused by the future non-use of the product and solve it for you.

We Hanjiu company always maintain our quality standards to provide customers with product and service innovation. If you are interested in our products, please go to the official website for more detailed consultation and understanding.
