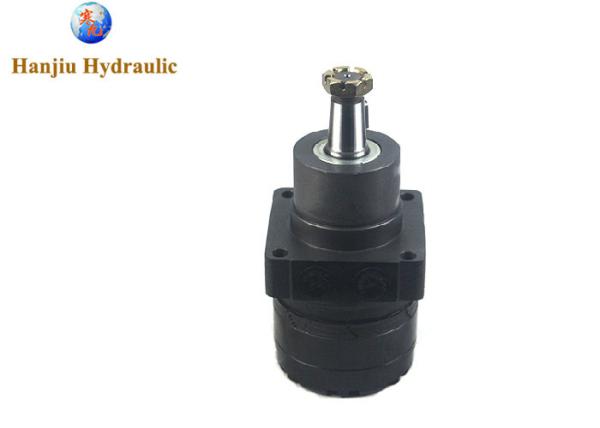

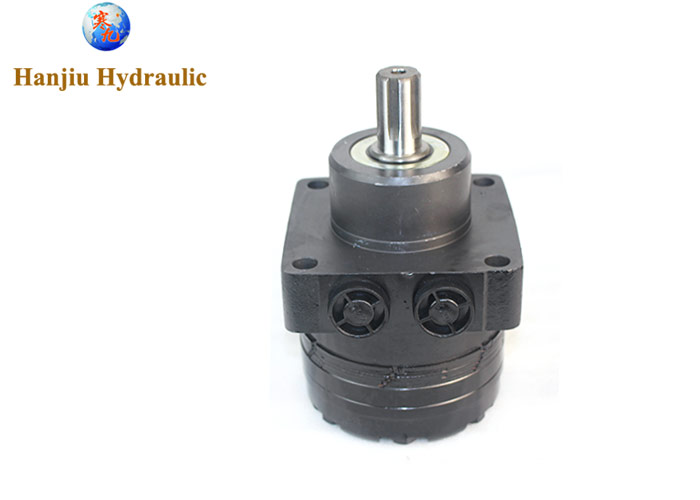

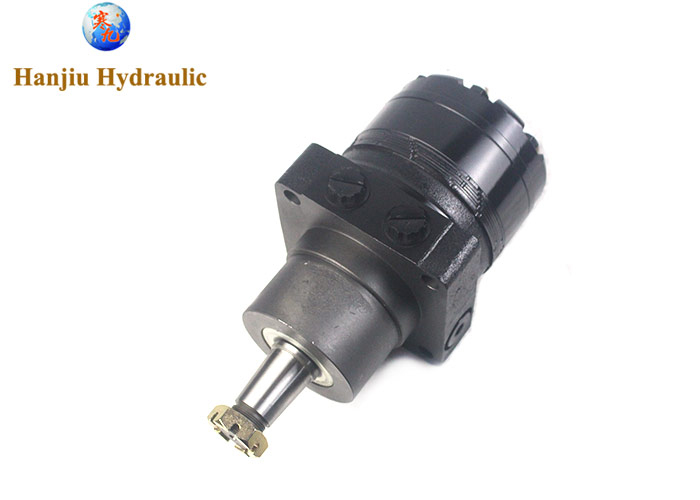

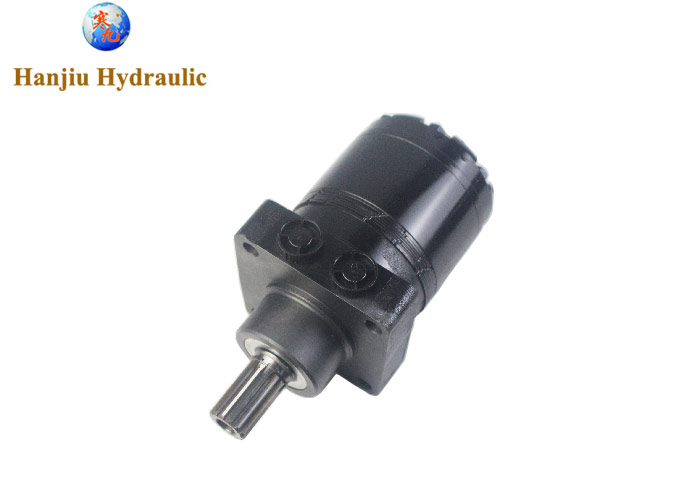

Hydraulic Low Speed High Torque Motor 22.88cu Bmer-4-375-Ws-T4 Wheel Drive Motor 31.75mm Cone Shaft

Brand Name : HANJIU

Model Number : BMER-4

Certification : CE, ISO9001

Place of Origin : China

MOQ : 100 Pieces

Price : 175 usd/pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple

Supply Ability : 70000 pieces per year

Delivery Time : 45 - 55 work days

Packaging Details : Box, carton, pallet

Product : Low Speed, High Torque (LSHT) Motor

Model No. : BMER-4

Displacement : 375cc

Flange : 4 bolt Wheel mount

Shaft : 31.75mm tapered shaft

Port : SAE ports

Rotation : reverse timed

Color : Black

Contact Now



hydraulic low speed high torque motor 22.88cu BMER-4-375-WS-T4 wheel drive motor 31.75mm cone-shaft





product details:

Product Low Speed, High Torque (LSHT) Motor
Model No. BMER-4-375-WS-T4-R-FYD
Displacement 375cc
Flange 4 bolt wheel
Shaft 31.75mm cone-shaft
Port SAE ports
Rotation unti-clockwise
Color Black
Brand Hanjiu





Specification:

Type BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER BMER
125 160 200 230 250 300 350 375 475 540 750
Geometric displacement (cm3/rev.)   118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90



Hydraulic Low Speed High Torque Motor 22.88cu Bmer-4-375-Ws-T4 Wheel Drive Motor 31.75mm Cone ShaftHydraulic Low Speed High Torque Motor 22.88cu Bmer-4-375-Ws-T4 Wheel Drive Motor 31.75mm Cone Shaft





Hydraulic Low Speed High Torque Motor 22.88cu Bmer-4-375-Ws-T4 Wheel Drive Motor 31.75mm Cone Shaft

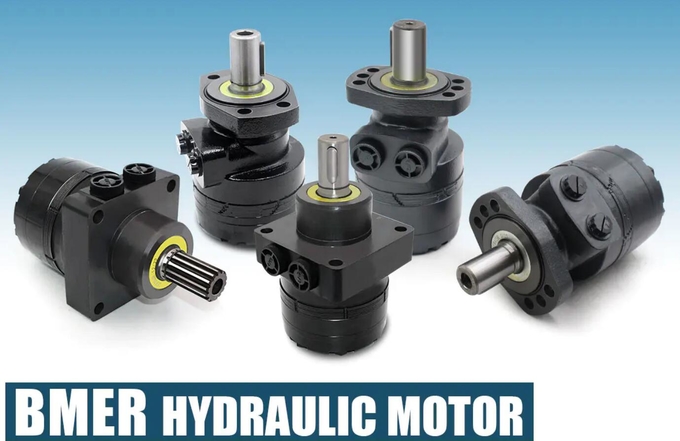

The BMER-2-3-4 series motor adapts the GEROLER gear set design with high speed distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of ISO 9001-2000 quality system.







Hydraulic Low Speed High Torque Motor 22.88cu Bmer-4-375-Ws-T4 Wheel Drive Motor 31.75mm Cone Shaft

​



Why choose HANJIU Hydraulic motors?



In addition to cost-effectiveness, Hanjiu technology is also known for its innovation and adaptability. we are constantly seeking new ways to improve our products, whether through the use of advanced materials, enhanced designs, or improved manufacturing processes. This has enabled us to stay ahead of the competition and maintain our position as leaders in the industry.



Another advantage of hanjiu orbital motors is our ability to provide customized solutions to meet the specific needs of our customers. Whether it's a unique design or a specialized application, Hanjiu technology is able to work closely with their customers to develop solutions that are tailored to their individual requirements. This level of flexibility and customer service has helped to solidify HANJIU's position as a trusted supplier of hydraulic components.
