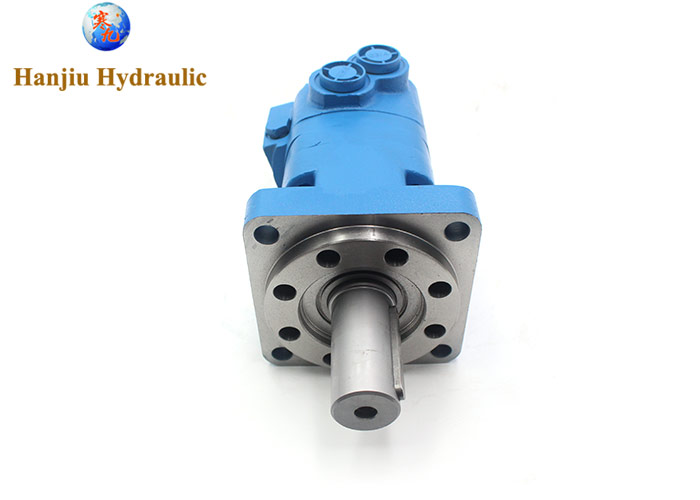

4000 Series Disc Geroler Eaton Orbit Motor 109-1227 109-1224 109-1225

  • 1
  • 2
  • 3

Brand Name : HANJIU

Model Number : BMK4 motor

Certification : CE

Place of Origin : CHINA

MOQ : 10pieces

Price : Negotiable

Payment Terms : T/T, D/P, D/A, L/C

Supply Ability : 300000PCS PER YEAR

Delivery Time : 25-30DAYS

Packaging Details : 2PCS IN ONE CARTON,800PCS IN 20'FCL

displacement : 160cc

Max.speed(rpm) : cont.560rpm/int.670pm

Max.torque(N.m) : cont.450N.m/int.680N.m

Max.pressure drop : cont.20Mpa/int.31Mpa

Oil temperature : normal-35℃-80℃

Viscosity : 42-74mm2/s

Contact Now

Low Speed High Torque Hydraulic Motor Eaton 4000 Series Disc Geroler Motor 109-1227,109-1224,109-1225



Displacement: 160 Cm3/r [9.9 In3/r]



Mounting: STANDARD, 4 BOLT; 127.00 [5.000] PILOT DIA.14.27 [.562] DIA. HOLES ON 161.92 [6.375] DIA.

                      BOLT CIRCLE. (SAE C)



Shaft: 40.00 [1.575] DIA. STRAIGHT WITH M12 X 1.75-6H THREAD, 7.955 [.3132] X 11.979 [.4716]

            WIDE X 69.98 [2.755] STRAIGHT KEY



Ports: G 3/4 PORTS - STAGGERED PORTS



Flow: G 1/4 BSP STRAIGHT THREAD WITH CHECK VALVE




Main specification



TYPE

BMK4
160

BMK4

200

BMK4

250

BMK4
315

BMK4
400

BMK4
500
Displacement(ml/r) 159.2 195.6 246.1 311.6 391.3 490.8
Max.speed(rpm)

cont.

 560 440 300 234 188 155
int. 670 535 450 351 282 232

Max.Pressure.Drop(Mpa)		 cont. 20

20

 20 20 20 20
int. 30 30 30 30 30 27.5
peak. 30 30 30 30 30 30
Max.Torque(N.m) cont. 450 565 710 920 1160 1445
int. 680 855 1080 1325 1625 1880
Max.Flow(cont.)(L/min) cont. 95 95 150 150 150 150
int. 115 115 205 225 225 225
Weight(kg) 26.3 26.5 26.8 27.3 28 28.8





4000 Series Disc Geroler Eaton Orbit Motor 109-1227 109-1224 109-12254000 Series Disc Geroler Eaton Orbit Motor 109-1227 109-1224 109-12254000 Series Disc Geroler Eaton Orbit Motor 109-1227 109-1224 109-1225



OTEHR TYEPS




Flange: Standard SAE C-mount



Shaft Size: 40mm Straight



Ports: G3/4 BSP



Order Code:



109-1184-006   110cc



109-1185-006   130cc



109-1227-006   160cc



109-1224-006   205cc



109-1225-006   245cc



109-1189-006    310cc



109-1190-006    395cc











4000 Series Disc Geroler Eaton Orbit Motor 109-1227 109-1224 109-1225





4000 Series Disc Geroler Eaton Orbit Motor 109-1227 109-1224 109-1225
