Hook Loader Hydraulic Spool Valve 1 Section With 1 Spools A 45l/Min Nominal Flow A Regulated Relief Valve

Name: Hook Loader Hydraulic Spool Valve 1 Section With 1 Spools A 45lMin Nominal Flow A Regulated Relief Valve
Brand: HANJIU
Price: 1 USD

Brand Name : HANJIU

Model Number : DCV45-1

Certification : CE

Place of Origin : CHINA

MOQ : 100 Sets

Price : start from 21.00 usd

Payment Terms : L/C, T/T, Western Union, Western Union

Supply Ability : 300000 sets per year

Delivery Time : 15 - 45 work days

Packaging Details : Carton, Box, Pallets

Item : Hydraulic valves

Model : DCV45

Apply to : Truck

Spool : 1

Function : Spring Return

Flow : 45 LPM

Contact Now

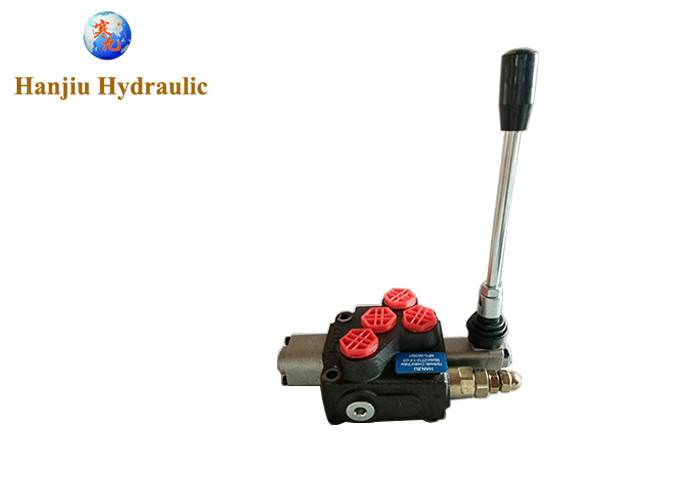

Hook Loader Hydraulic Spool Valve, 1 section with 1 spools, a 45 l/min nominal flow, a regulated relief valve

Hanjiu Technology offers a variety of hydraulic valves, provides direction control to pressure relief to specific functions in your truck's hydraulic operations.

1 section hydraulic spool valve with 3/8th BSP ports.

Max Flow: 45 lpm
Max Pressure: 315 Bar ( 25 Bar on T)
Ports: 3/8th BSP

Nominal flow rate		45 l/min	12 US gpm
Operating pressure (maximum)		315 bar	4600 psi
Back pressure (maximum)	on outlet port T	25 bar	360 psi
Fluid temperature range	with NBR(BUNA-N) seals	from - 20° to 80°C	from - 4° to 176° F
Fluid temperature range	with FPM(VITON) seal	from - 20° to 100°C	from - 4° to 212° F
Viscosity	operating range	from 15 to 75 mm2 /s	from 15 to 75 cst
	min	12 mm2 /s	12 cst
	max.	400 mm2 /s	400 cst
Ambient temperature range		from - 40° to 60°C	from - 40° to 140° F

Hook Loader Hydraulic Spool Valve 1 Section With 1 Spools A 45l/Min Nominal Flow A Regulated Relief Valve

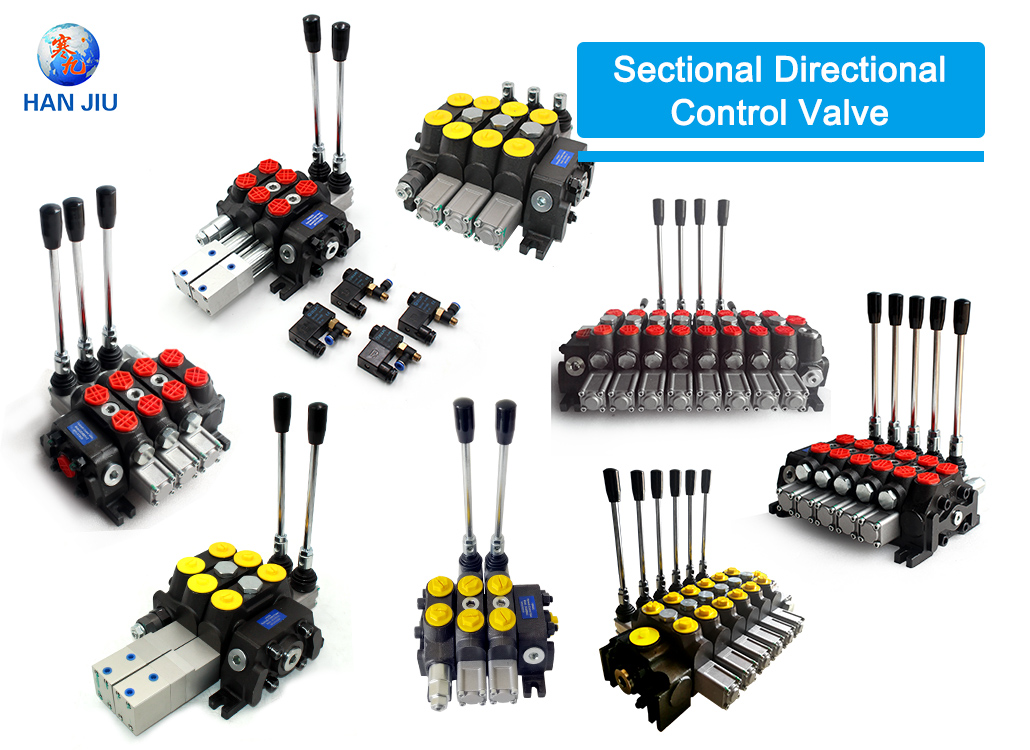

More Valve available:

Hook Loader Hydraulic Spool Valve 1 Section With 1 Spools A 45l/Min Nominal Flow A Regulated Relief Valve

For electro-pneumatic and electro remote control options call our sales team

on +86-311-68123061 or WhatsApp 008613831101542.
