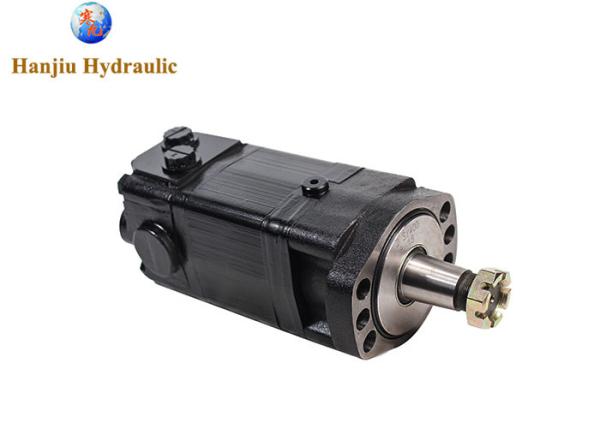

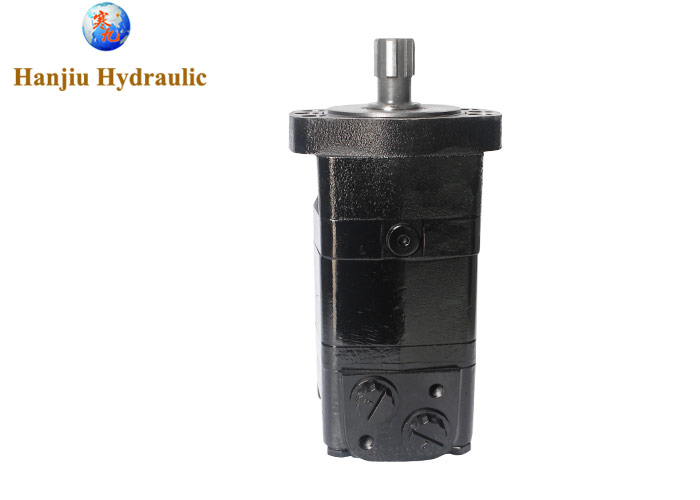

OMS-400 MOTOR DANFOSS ORBIT MOTOR TAPERED SHAFT MAGNETO FLANGE BSP PORTS
OMS400 is a hydraulic motor manufactured by Hanjiu Technology
Details as below:
- Port Size:7/8-14 UNF
- displacement:400cc
- Shaft:31.75 tapered shaft
- Port Location Side Ported
- Flow Rating :75l/min
- Max Speed:cont.185rpm,int.225 rpm
- Shaft seal:High pressure seal Kit
- function:low leakage
- Country of Manufacture China

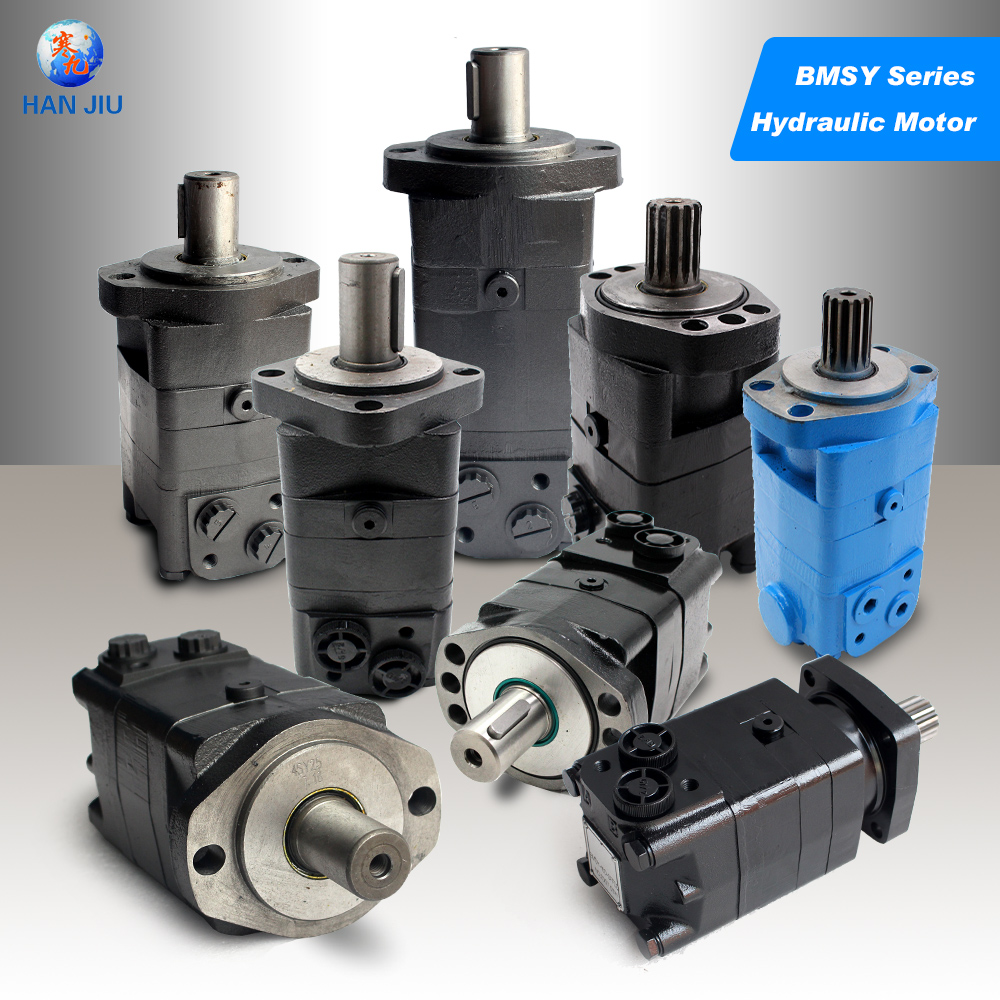

Main Specifications:
| Type | BMSY
80 | BMSY
100 | BMSY
125 | BMSY
160 | BMSY
200 | BMSY
250 | BMSY
315 | BMSY
400 | BMSY
475 |
Geometric displacement
(cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
The Oms-400motor is produced according to the technical parameters and standards provided by Hanjiu Hydraulics. By changing the direction of the input and output flow rates, the motor is quickly reversed and an equivalent torque is generated in both directions. Therefore, we also take technical improvements to improve the performance of our products according to the needs of the market. The main features are:
1. The use of end face distribution and axial surface distribution, simple and compact structure, high distribution accuracy.
2. The rotational inertia is small, it is easy to start under the load, the forward and reverse can be used, and there is no need to stop when changing.
3. After the air is removed, fill the fuel tank, and then start to gradually increase the load on the motor until the maximum load, and observe whether there are abnormal phenomena, such as noise, oil rise and oil leakage.
Oms-400 orbit motor is widely used in agricultural machinery, fishing machinery, plastics industry, mining, construction machinery and other industries.
The Oms-400 motor has the advantages of high efficiency, long life, wide speed range, high starting torque, smooth and compact high-speed rotation, and can be directly connected with the working machine to adapt to various low-speed heavy-duty facilities.
Hydraulic company Hanjiu Technology has now become one of the most famous hydraulic motor manufacturers in China by rapidly innovating and improving all aspects of its products and services, and has occupied a good position in the Chinese market. While improving technology, they also minimize profits, form price and quality relative advantages, and are committed to developing the most cost-effective hydraulic and other related products on the market, thereby enhancing the market competitiveness of the motor, Hanjiu Technology Hydraulic Company in good faith first, quality first for the purpose, from employee entry, raw materials into the factory, from parts processing, assembly programs to products, have a relatively perfect product quality system, and passed the CE certification, is committed to establishing an internationally renowned brand, looking forward to your purchase!
