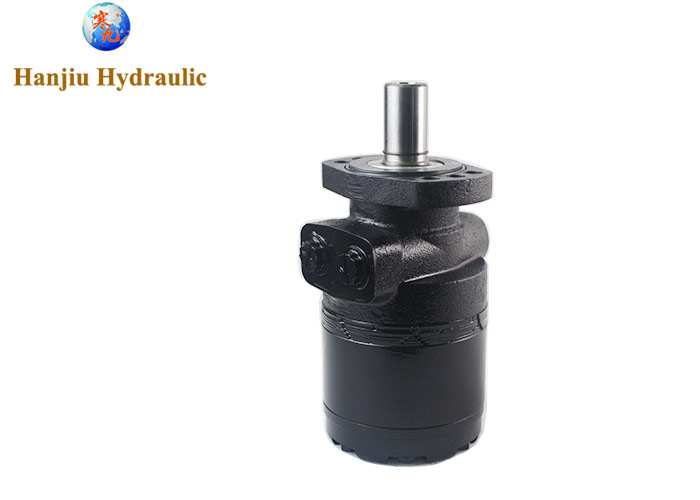

DANFOSS WHITE 530 Torqmotor Geroler Hydraulic Motor High Pressure Motor 750cc Key Shaft
.
Product details:
| 1, | model number | BMER |
| 2, | displacement | 750.00ml/r |
| 3, | flange | magneto Mount |
| 4, | shaft | key shaft,1.25inch |
| 5, | oil port | G1/2,7/8-14UNF |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | PARKER TG,WHITE500/530 |
Main Specifications:
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 |
| Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
This type BMER series motors have high torque, widely used on earth auger, drilling rig,soil sampling rig...
When choosing a suitable product, the manufacturer is very important. A reliable and reliable manufacturer will save you a lot of unnecessary troubles. On the other hand, a strict manufacturer will ensure the quality of the products it produces, and you will not have to spend a lot on the later use and maintenance of the products. thought. Hanjiu Technology is such a company that can make you feel at ease. As a professional manufacturer of hydraulic products, Hanjiu Technology has more than ten years of experience in the production and manufacture of hydraulic motors and has excellent technology. We have a professional R&D team, and always put product quality and customer opinions first. It is for this reason that Hanjiu Technology has won a lot of praise from many customers. Product sales have also developed from one country to many countries. So far, more than 120 countries around the world have our sales points.
These countries include: Germany, Japan, Italy, Spain, Poland, Russia, Belarus, South Korea, Turkey, Egypt, Brazil, Argentina, Chile, India, Australia, United Arab Emirates, Saudi Arabia, the United States, Mexico, etc. Nine Technology's products have been well received. Hanjiu Technology is committed to building an international brand and conducting longer-term cooperation in the world of hydraulics. Therefore, Hanjiu Technology cherishes every customer and every order, because quality is the basis for our products to be exported to other countries, and word of mouth It is a powerful weapon for us to open up the international market. If you choose the products of Hanjiu Technology, you only need to buy and use them. We will do our best to serve you with quality monitoring in the early stage and maintenance guarantee in the later stage.
Product Tags:
|
|

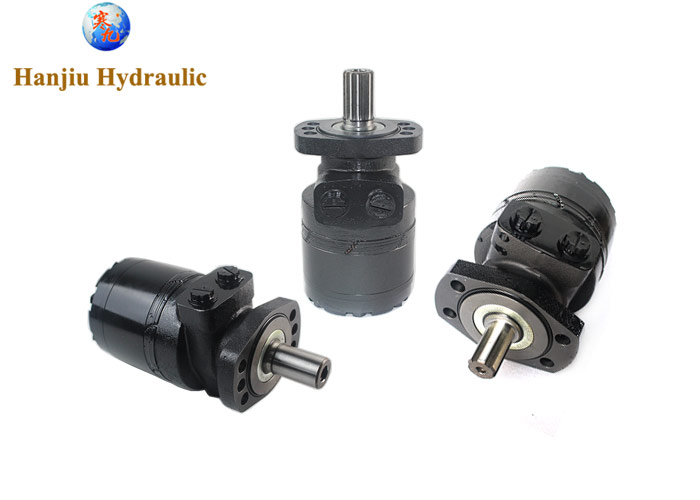

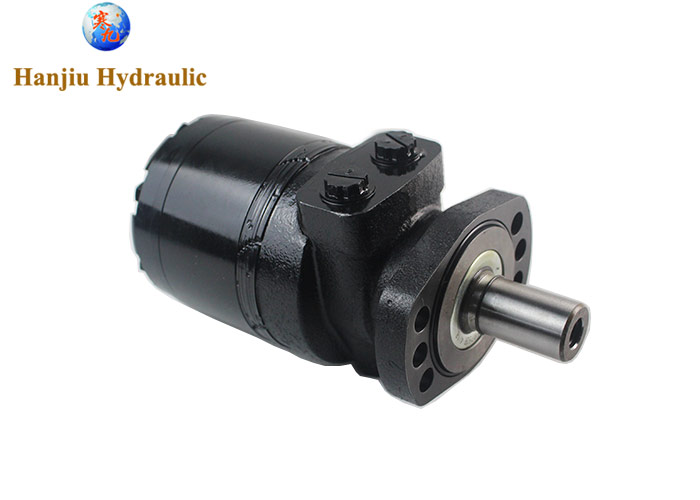

Danfoss 530 Orbit Hydraulic Motor Torqmotor Geroler High Pressure 750cc Key Shaft Images
|
