Excavator hydraulic technical solutions SVV09

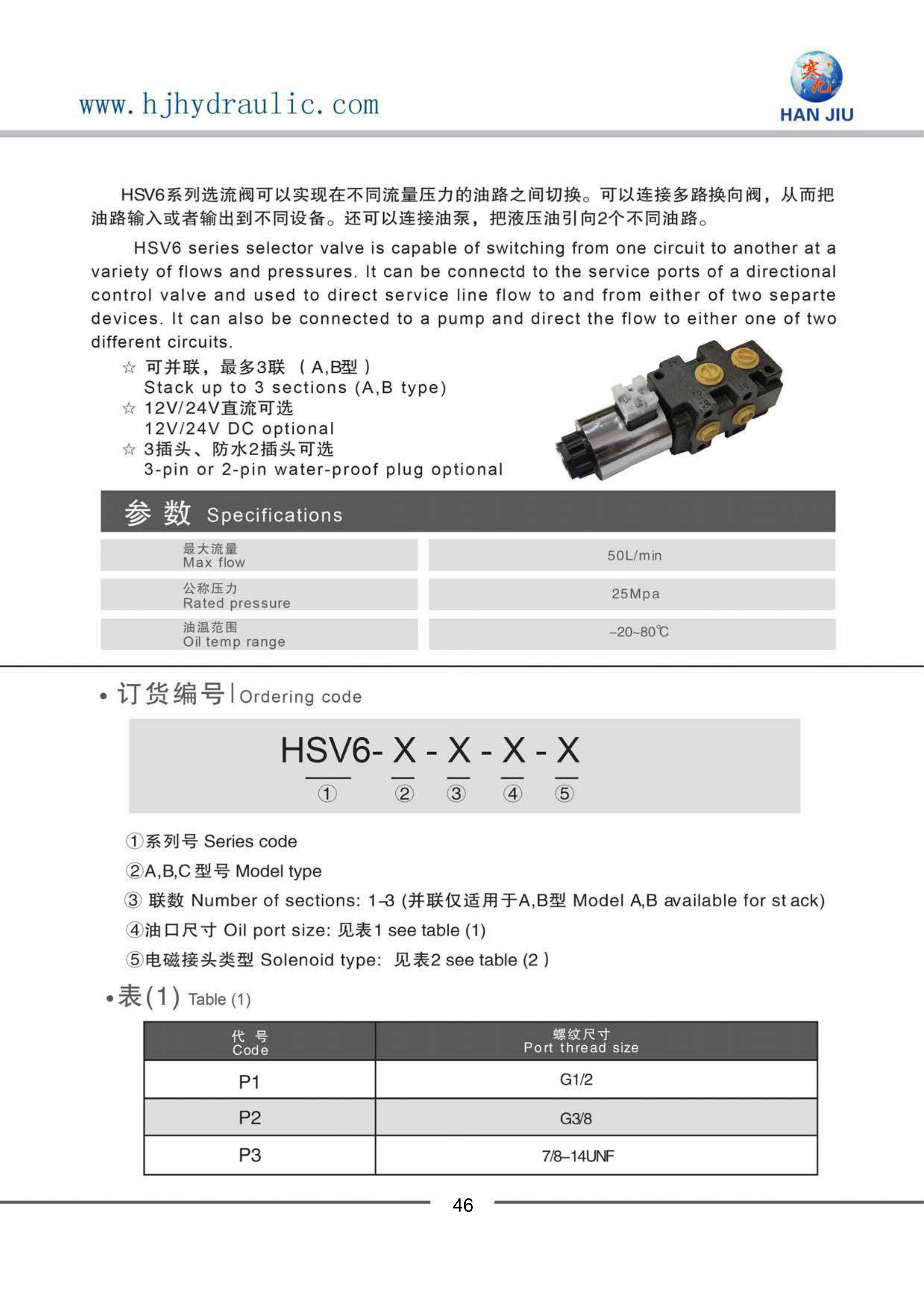

Ordering code
HSV96---X---X---X---X
1 2 3 4 5
1.series code
2.Model type: A/B/C
3.Number of sections:1-3( Model A,B available for stack)
4.Ports size
| Code | Port Thread size |
| P1 |
G1/2
|
| P2 |
G3/4
|
| P3 |
7/8-14UNF
|
Specifications:
| parameter | value |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 90 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | 100%
|
We provide hydraulic solutions for retrofitting excavators, changing excavator movements and other machinery. Hydraulic control valves are one of them.
At the same time, we also provide hydraulic solutions for the following equipment, such as drilling rigs, cranes, flatbed trucks, special operation vehicles (sanitation trucks, garbage trucks, road sweepers), dump trucks, truck-mounted cranes and other construction machinery, tractors, and flatbed trucks , Truck-mounted cranes, mainly agricultural equipment, wood splitters, drilling rigs, truck-mounted cranes, can replace some DCVs according to the flow pressure installation size, tractors, two-headed, flatbed trucks, truck-mounted cranes, mainly agricultural equipment, corn harvesters, Wheat net harvester, large weeder, peanut harvesting/fruit picking machine and other crop harvesting machinery, modified excavator, changing excavator action and other machinery, scissor-type aerial work vehicles, sprayers, loaders, forklifts (oil fork), rig travel valve, rig drop valve
Tractors, loaders and more.
There are many types of flow, installation, models, sizes, and types. Welcome to contact us for cooperation.

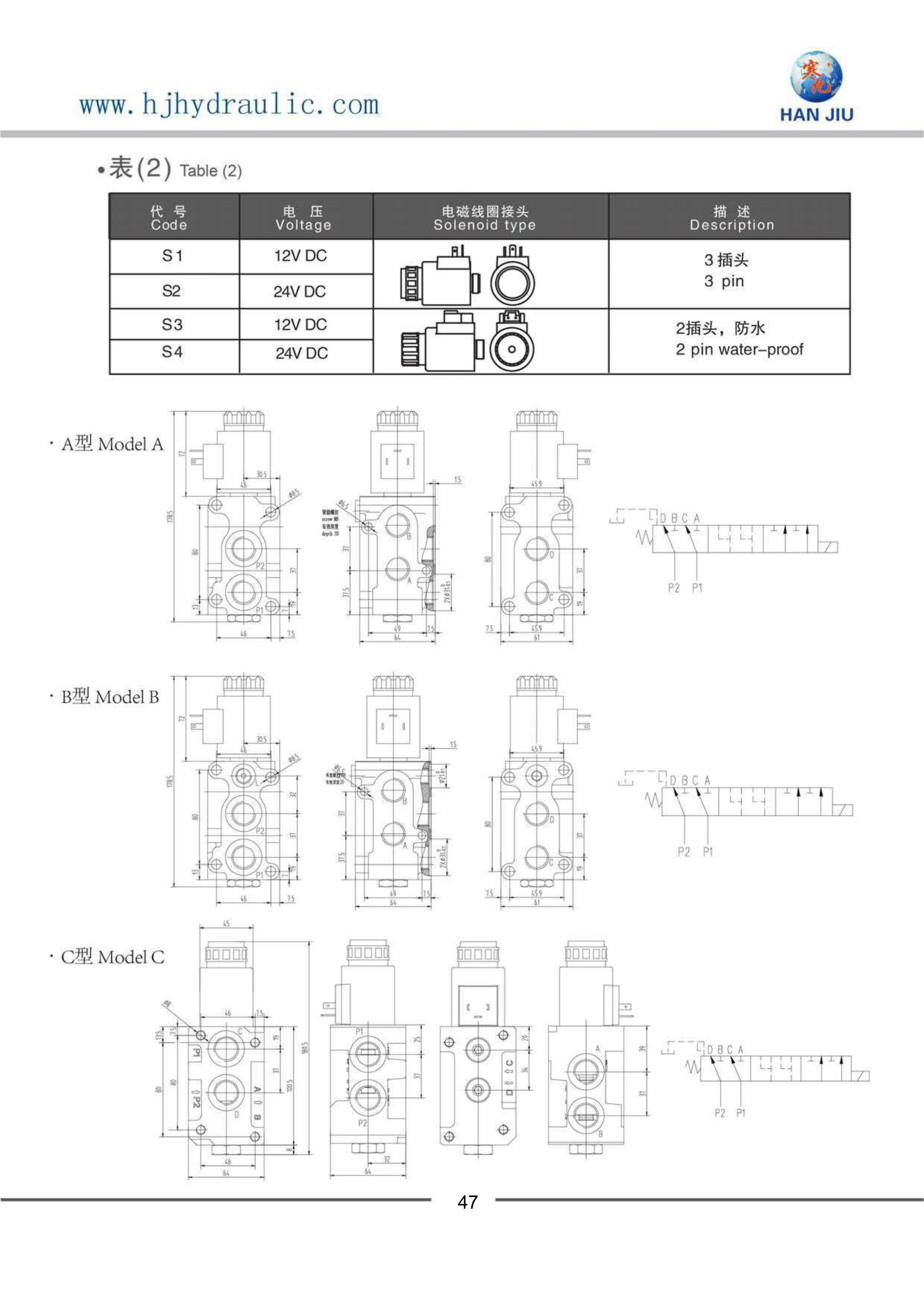

Model type

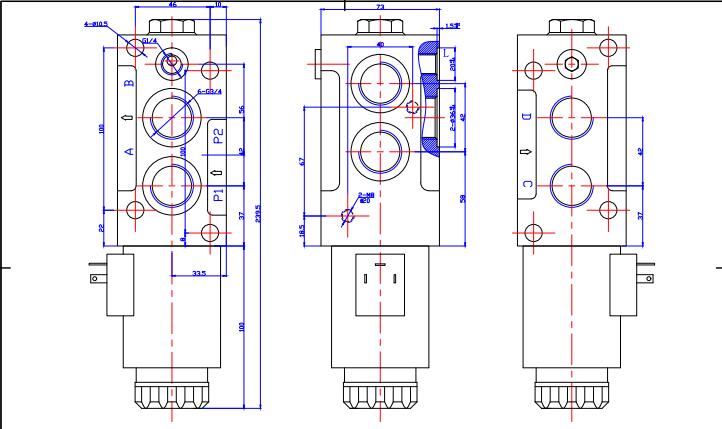

6 ways, 2 positions (6/2) solenoid operated valves. They are used for selective connection of different cylinders/hydraulic motors in the application. When valve is de-energised, oil directs from D & C ports to first actuator. When valve coil is energised, oil directs from A & B ports to second actuator
Through the ports P1 and P2, the solinoid valve DVS6-6 / 2L diverter is connected to one of the working sections of the regular directional control valves
To ports C D - connect consumer 1
To ports A1 B1 - connect consumer
