120LPM 5 Spools Hydraulic Directional Control Valve Side Inlet 12-18 Months Warranty

Brand Name : HANJIU

Model Number : DCV120

Certification : CE

Place of Origin : CHINA

MOQ : 1Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 300000 sets per year

Delivery Time : 10-15 work days

Packaging Details : Carton Packing and finally with a Tray, or Wooden Box

Model No. : DCV120-5

Warranty : 12-18 months

Spool : 1, 2, 3, 4, 5, 6, ...

Flow : 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...

Spool function : O/Y/A

Contact Now

120LPM Hydraulic Directional Control Valve side inlet with relief valve 5spools DCV120-5 drilling machines





DCV directional control valve have the features of high pressure, compact construct, stable over load valve
performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.



  • Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
  • Spool function:A, O, Y, P, etc.
  • Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
  • Circuit type:parallel,series-parallel
  • C port(oil bridge) as hydraulic source for other parts
  • Structure:Sectional
Norminal Flow
 120L/min
Max Flow
 160L/min
Max Pressure
35mpa
Control Type
manual, pneumatic, hydraulic, electro-hydraulic
Allowed back pressure
≤1 mpa
Oil port size
customizable

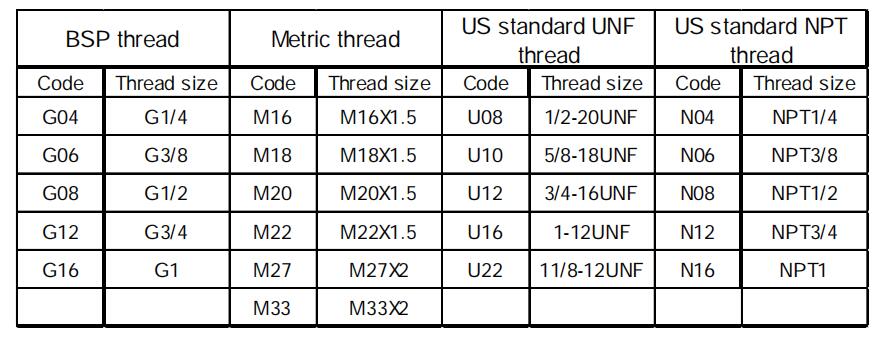

oil ports



120LPM 5 Spools Hydraulic Directional Control Valve Side Inlet 12-18 Months Warranty



spool functional



120LPM 5 Spools Hydraulic Directional Control Valve Side Inlet 12-18 Months Warranty



Application:

  • agricultural machines
  • dump truck
  • construction machines
  • drilling machines
  • special purpose vehicle



Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.

We are proud of being your solution partner in hydraulics.



Strong at alternative , Eaton Char-lynn, Parker, M+S, industiral, mobile, agri, marine parts,

able to support your business with more & better hydraulic solutions



120LPM 5 Spools Hydraulic Directional Control Valve Side Inlet 12-18 Months Warranty
