Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM

Name: Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM
Brand: HANJIU
Price: 1 USD

Buy cheap Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM product

Brand Name : HANJIU

Model Number : BMP series

Certification : CE

Place of Origin : CHINA

MOQ : 100 Sets

Price : Start from 95 usd

Payment Terms : L/C, T/T, Western Union, Western Union

Supply Ability : 300000 sets per year

Delivery Time : 35 - 45 work days

Packaging Details : Carton, Box, Pallets

Item : LSHT motors

Model : BMP

Fastening : 2 Bolt

Port : Staggered ports

Shaft : Straight

Pilot : 82.5mm

Contact Now

Can’t find what you are looking for? Contact us today to discuss your questions or application needs with our team.

Diaphragm Pump Hydraulic Drive Motor, Danfoss Replacement, BMP series, 125cc, 540 RPM

Fast review of this Drive Motor:

Hydraulic drive motor with a constant speed valve which maintains the motor speed of 540 rpm

Model No.	BMP-125
Displacement	125 ml/r
Pressure	170 bar
Output shaft	25mm Straight
Weight	11 kgs
Manufacturer	Hanjiu

Main Specifications:

Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMP BMPH BMPW 36	BMP BMPH BMPW 50	BMP BMPH BMPW 80	BMP BMPH BMPW 100	BMP BMPH BMPW 125	BMP BMPH BMPW 160	BMP BMPH BMPW 200	BMP BMPH BMPW 250	BMP BMPH BMPW 315	BMP BMPH BMPW 400	BMP BMPH BMPW 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Technical data for BMP with 31.75 and 32 shaftt:

Type		BMP BMPH 36	BMP BMPH 50	BMP BMPH 80	BMP BMPH 100	BMP BMPH 125	BMP BMPH 160	BMP BMPH 200	BMP BMPH 250	BMP BMPH 315	BMP BMPH 400	BMP BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

* Continuous pressure:Max.value of operating motor continuously.

* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .

* Peak pressure:Max.value of operating motor in 0.6 second per minute.

A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance.

Hydraulic motors provide excellent control for acceleration, operating speed, deceleration, smooth reversals, and positioning. They also provide flexibility in design and eliminate much of the bulk and weight of mechanical and electrical power transmission. Accurate torque and speed calculations based upon system parameters will ensure the motor can survive the harshest operating environments.

Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM

Can’t find what you are looking for? Contact us today to discuss your questions or application needs with our team.

Product Tags:

540RPM Hydraulic Drive Motor

125cc Hydraulic Drive Motor

Diaphragm Pump danfoss hydraulic motor

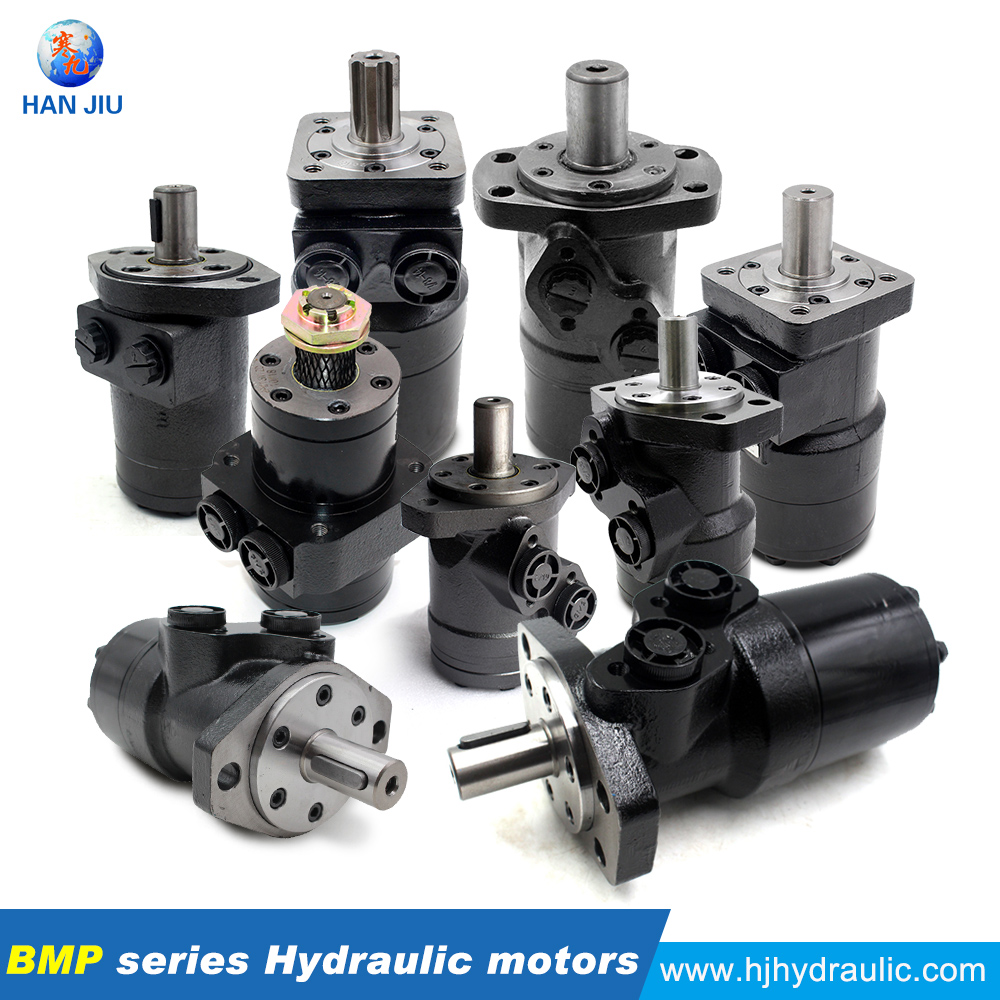

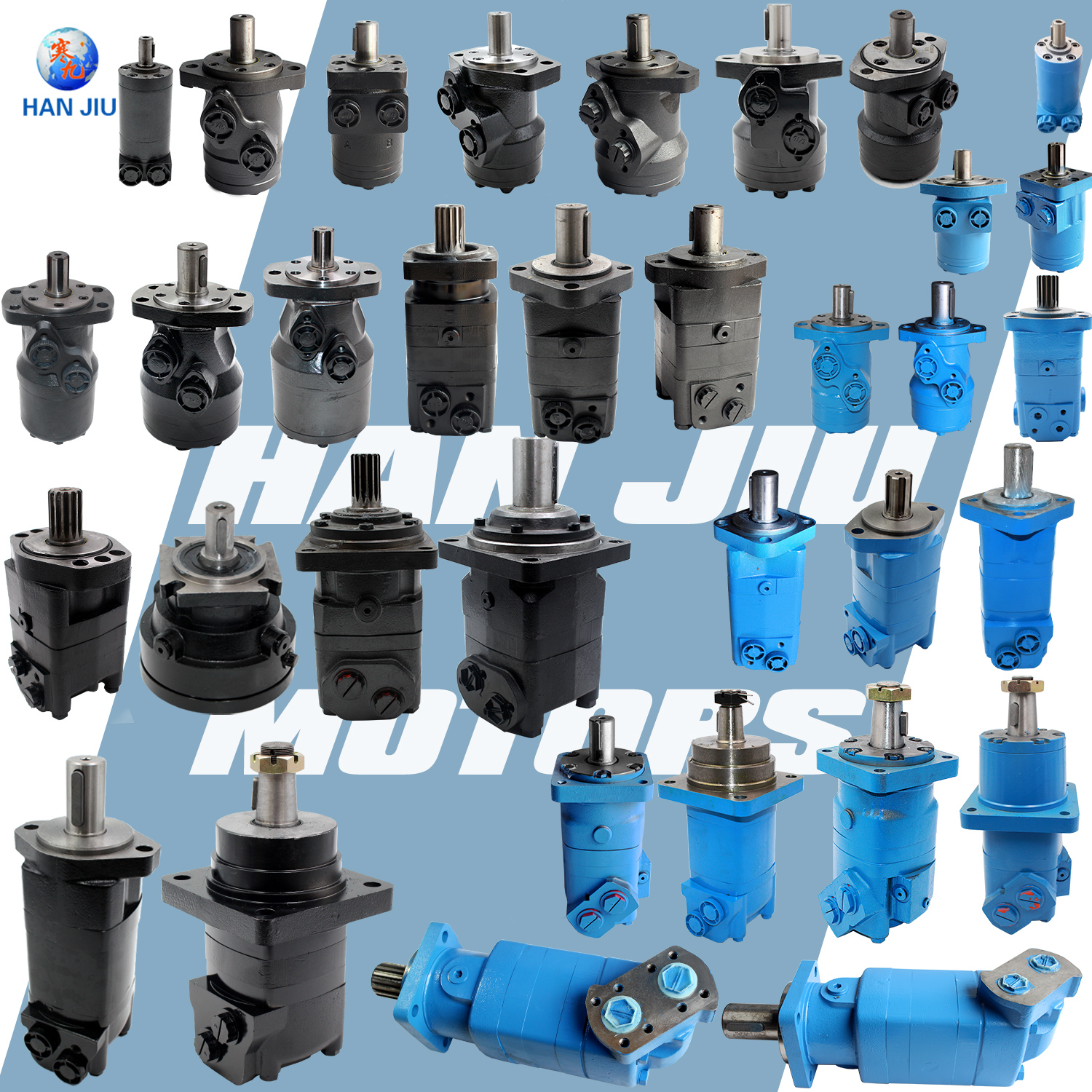

Diaphragm Pump Danfoss Replacement Hydraulic Drive Motor BMP Series 125cc 540RPM Images
