Char-Lynn (Eaton) 112-1075-490 Hydraulic Geroler Disc Valve Motor 6000 Wheel

Name: CharLynn Eaton 1121075490 Hydraulic Geroler Disc Valve Motor 6000 Wheel
Brand: HANJIU
Price: 1 USD

Buy cheap Char-Lynn (Eaton) 112-1075-490 Hydraulic Geroler Disc Valve Motor 6000 Wheel product

Brand Name : HANJIU

Model Number : BMK6-500-WT1SF5

Certification : CE

Place of Origin : China

MOQ : 1 Pieces

Price : Contact seller to ask

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 35 work days

Packaging Details : Box, Pallet

Item : Hydraulic Motor

Type : Orbit motor

Direction : Left and right

Displacement : 490cc

OEM # : Char-lynn 112-1075

Alternative # : BMK6-500-WT1SF5

Contact Now

Char-Lynn (Eaton) 112-1075-490 Hydraulic Geroler Disc Valve Motor - 6000 - Wheel, similar type

Specifications:

Series	6000 - Standard
Displacement	500 cm³/r
Mounting Type	4-Bolt Wheel Flange
Output Shaft Size	45mm 1:8 tapper, flat key 11.13x11.13x31.75
Port size	1-5/16-12UN
Drain port size	7/16-20UNF

Over View:

8 displacements available
Presents a multitude of options that make this motor very smart and flexible to apply
Very tough motor for demanding applications
Can be used in a multitude of industries
Very easy/flexible to integrate in a system
Applications: Mobile equipment, snow removal, mowing, sprayer, trencher and wood products

Technical details:

BMK6-500-WT1SF5

TYPE		BMK6 200	BMK6 250	BMK6 315	BMK6 400	BMK6 500	BMK6 630	BMK6 800	BMK6 1000
Displacement(ml/r)		195.6	246.1	311.6	391.3	490.8	623	802.4	981.6
Max.speed(rpm)	cont.	765	610	480	382	304	240	186	152
Max.speed(rpm)	int.	865	830	690	570	455	360	280	230
Max.Pressure.Drop(Mpa)	cont.	20	20	20	20	20	17.5	14	14
	int.	30	30	30	30	27.5	22.5	15.5	14
	peak.	30	30	30	30	30	24	17.5	17
Max.Torque(N.m)	cont.	565	710	920	1160	1445	1480	1580	1675
Max.Torque(N.m)	int.	840	1080	1325	1625	1880	1890	1880	1860
Max.Flow(cont.)(L/min)	cont.	150	150	150	150	150	150	150	150
Max.Flow(cont.)(L/min)	int.	170	205	225	225	225	225	225	225
Weight(kg)		26.3	26.8	27.3	28	28.8	29.6	30.5	32

Eaton similar type motors are available we belows:

J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-, 193-)
4000 (109-, 110-, 111-)
6000 (112-, 113-, 114-)
10000 (119-)

These similar type Eaton motors are with following advantages:

same perofrmance as Eaton Char-lynn
complete model series
meet your requirement on quality
meet your requirement on price
guarranty 100% qualified motors
warranty terms as below
generally we do not stock inventory, but sometimes we do have some stock, so contact us to ask if you need a urgent shipment
fast delivery (bulk order production time 25 - 35 days)

Warranty:

Warranty service is also provided based on following conditions:
12 months from the date of commission OR
13 months from the date of delivery to the purchaser OR
1000 operating hours

Char-Lynn (Eaton) 112-1075-490 Hydraulic Geroler Disc Valve Motor 6000 Wheel

Product Tags:

Hydraulic Geroler Disc Valve Motor

Hydraulic Orbit Motor

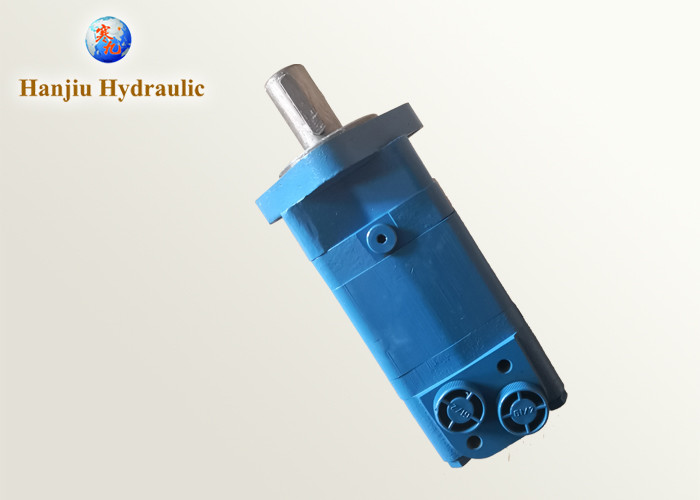

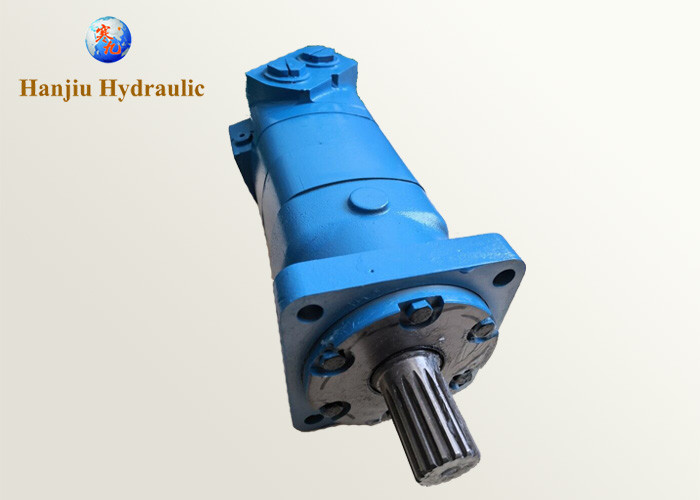

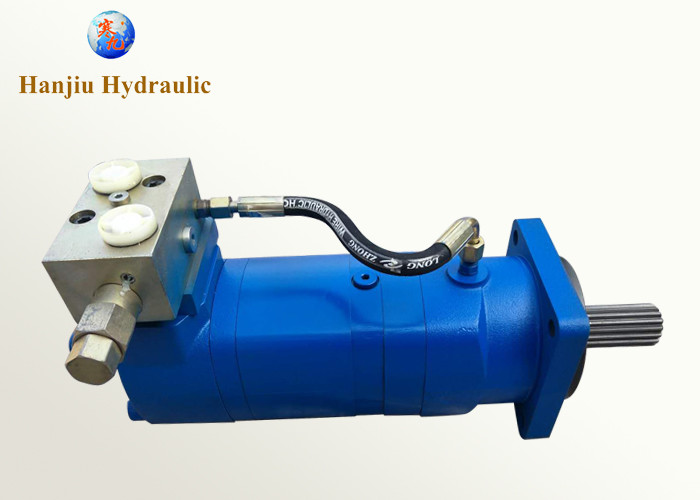

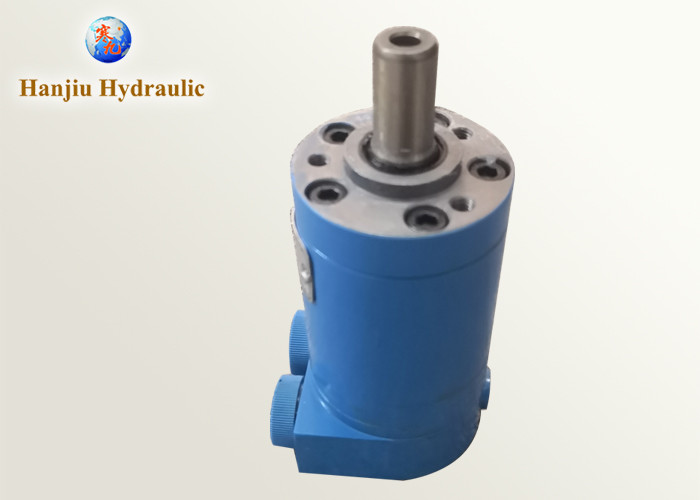

Char-Lynn (Eaton) 112-1075-490 Hydraulic Geroler Disc Valve Motor 6000 Wheel Images
